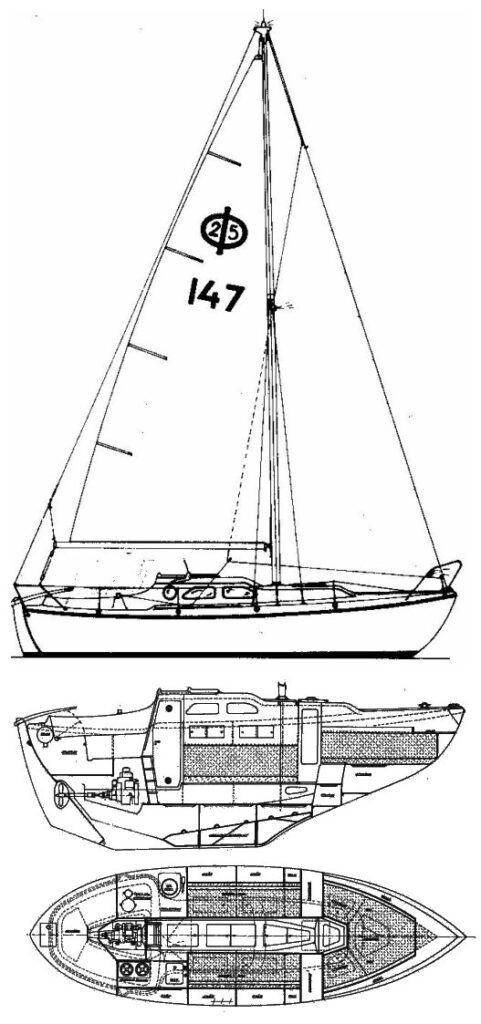

STORFIDRA 25
Built by AB Fisksätra Varv (SWE)
• Designed by Colin Archer type
General Information
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG - solid
First Built:
1969
Number Built:
220
Dimensions
Length Overall (LOA):
7.60 m
Length Waterline (LWL):
6.30 m
Beam:
2.40 m
Draft (Max):
1.29 m
Max Height:
12.01 m
Weight & Ballast
Displacement:
3,100 kg
Ballast:
1,300 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
14.77 m²
Mainsail Area:
13.78 m²
Total Sail Area (calculated):
28.55 m²
Sail Area (reported):
28.52 m²
I (Fore Triangle Height):
9.85 m
J (Fore Triangle Base):
3.00 m
P (Mainsail Hoist):
8.35 m
E (Boom Length):
3.30 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD 2A
Engine Power:
12 HP
Performance Ratios
Hull Speed:
6.09 knots
SA/Displacement (Calculated):
13.43
SA/Displacement (Reported):
13.68
Ballast/Disp Ratio:
41.94%
Displacement/Length:
345.47
Comfort Ratio:
30.81
Capsize Screening:
1.66
S-Number:
1.21
Notes
Built in Sweden until 1980 and some built later in Holland until 1990?.
