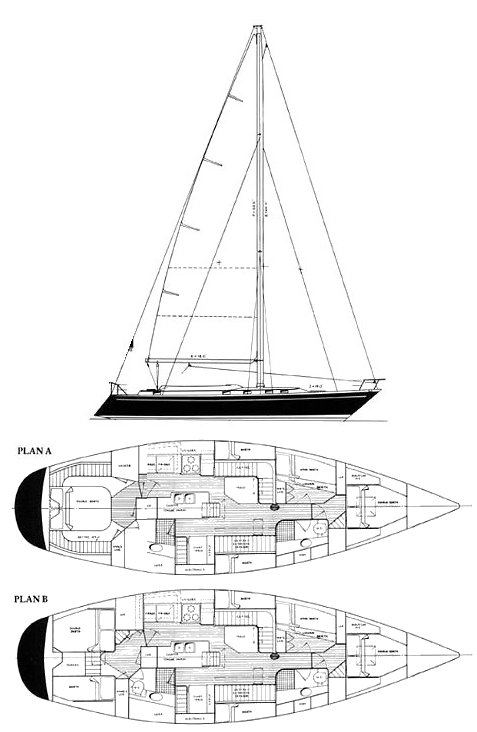

STEVENS 47
Built by Queen Long (TAIWAN)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1981
Last Built:
1986
Number Built:
56
Dimensions
Length Overall (LOA):
14.27 m
Length Waterline (LWL):
11.51 m
Beam:
4.34 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
14,515 kg
Ballast:
6,577 kg
Sail Plan
Foresail Area:
52.95 m²
Mainsail Area:
44.73 m²
Total Sail Area (calculated):
97.68 m²
Sail Area (reported):
97.73 m²
I (Fore Triangle Height):
18.29 m
J (Fore Triangle Base):
5.79 m
P (Mainsail Hoist):
16.31 m
E (Boom Length):
5.49 m
Engine & Systems
Engine Make:
Ford Lehman
Engine Type:
Diesel
Engine Power:
80 HP
Fuel Capacity:
379 L
Water Capacity:
946 L
Performance Ratios
Hull Speed:
8.23 knots
SA/Displacement (Calculated):
16.42
SA/Displacement (Reported):
16.77
Ballast/Disp Ratio:
45.31%
Displacement/Length:
265.55
Comfort Ratio:
35.52
Capsize Screening:
1.80
S-Number:
2.01
Notes
Various engines were installed including Westerbeke, Universal, Perkins and Yanmar.
