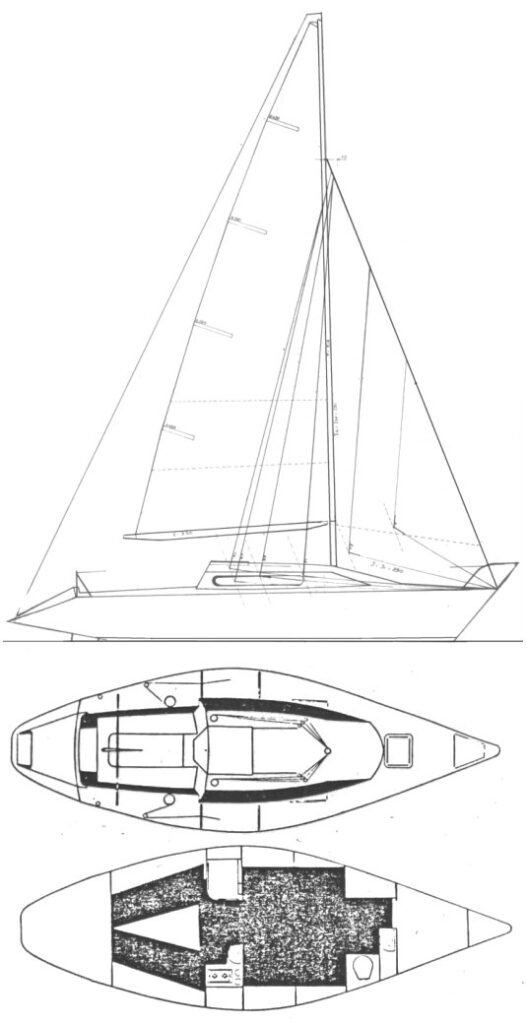

STAG 29
Built by Cantieri Nautici (ITA)
• Designed by Luca Taddei
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1984
Last Built:
1989
Dimensions
Length Overall (LOA):
8.90 m
Length Waterline (LWL):
6.05 m
Beam:
3.00 m
Draft (Max):
1.75 m
Weight & Ballast
Displacement:
1,350 kg
Ballast:
559 kg
Sail Plan
Foresail Area:
12.37 m²
Mainsail Area:
17.05 m²
Total Sail Area (calculated):
29.42 m²
Sail Area (reported):
29.45 m²
I (Fore Triangle Height):
9.00 m
J (Fore Triangle Base):
2.75 m
P (Mainsail Hoist):
9.60 m
E (Boom Length):
3.55 m
Engine & Systems
Fuel Capacity:
49 L
Water Capacity:
121 L
Performance Ratios
Hull Speed:
5.97 knots
SA/Displacement (Calculated):
24.09
SA/Displacement (Reported):
24.58
Ballast/Disp Ratio:
41.40%
Displacement/Length:
169.86
Comfort Ratio:
9.66
Capsize Screening:
2.74
S-Number:
3.99
Notes
IOR 1/2 ton.
