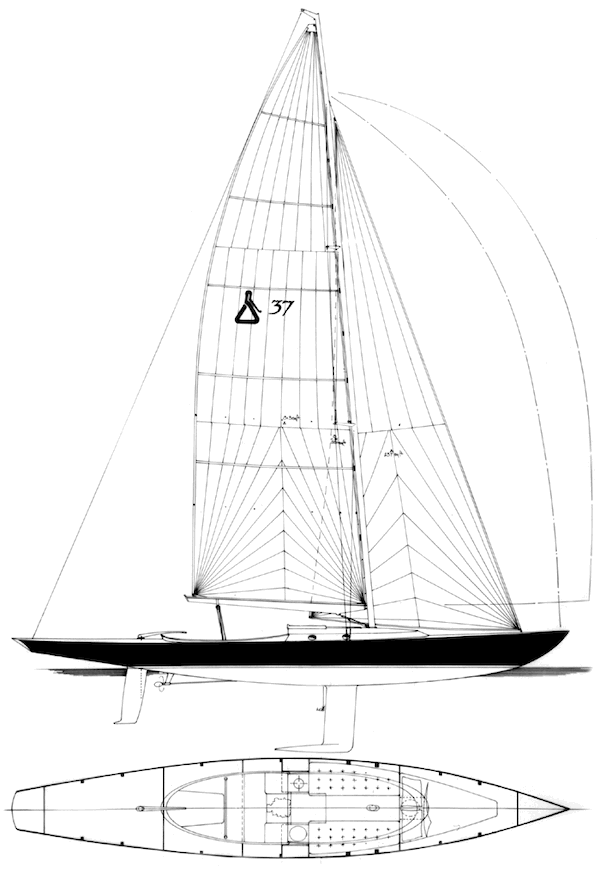

SPIRIT 37 (McMILLAN)
Built by Spirit Yachts (UK)
• Designed by Sean McMillan
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
Wood
First Built:
1994
Last Built:
2005
Dimensions
Length Overall (LOA):
11.30 m
Length Waterline (LWL):
7.90 m
Beam:
2.13 m
Draft (Max):
1.67 m
Weight & Ballast
Displacement:
2,200 kg
Ballast:
1,000 kg
Sail Plan
Sail Area (reported):
45.15 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
1GM10
Engine Power:
9 HP
Fuel Capacity:
25 L
Water Capacity:
50 L
Performance Ratios
Hull Speed:
6.82 knots
SA/Displacement (Reported):
27.22
Ballast/Disp Ratio:
45.45%
Displacement/Length:
124.34
Comfort Ratio:
19.20
Capsize Screening:
1.65
Notes
The first model from Spirit Yachts in the UK.
