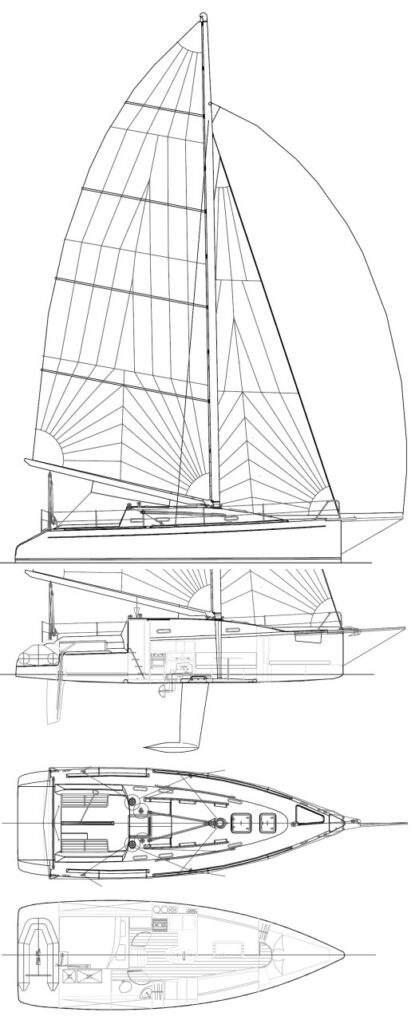

AERODYNE 35
Built by Bellamer (FIN)
• Designed by Groupe Finot
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Frac. Sloop (Rotating Spar)
Construction:
Composite
First Built:
2000
Dimensions
Length Overall (LOA):
10.82 m
Length Waterline (LWL):
10.52 m
Beam:
3.52 m
Draft (Max):
2.50 m
Weight & Ballast
Displacement:
3,200 kg
Ballast:
1,000 kg
Ballast Type:
Lead/Water
Sail Plan
Foresail Area:
24.20 m²
Mainsail Area:
38.72 m²
Total Sail Area (calculated):
62.92 m²
Sail Area (reported):
70.05 m²
I (Fore Triangle Height):
12.41 m
J (Fore Triangle Base):
3.90 m
P (Mainsail Hoist):
15.40 m
E (Boom Length):
5.03 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GM20
Engine Power:
18 HP
Fuel Capacity:
79 L
Water Capacity:
148 L
Performance Ratios
Hull Speed:
7.87 knots
SA/Displacement (Calculated):
28.97
SA/Displacement (Reported):
32.90
Ballast/Disp Ratio:
31.25%
Displacement/Length:
76.70
Comfort Ratio:
12.04
Capsize Screening:
2.41
S-Number:
6.78
Notes
Also called SOUTH 35.
