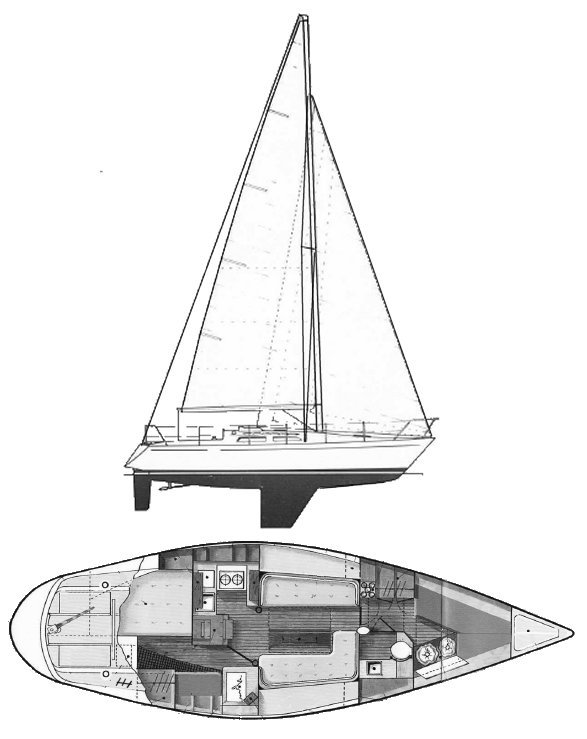

SIGMA 36 (THOMAS)
Built by Marine Projects Ltd. (UK)
• Designed by David Thomas
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1979
Dimensions
Length Overall (LOA):
10.97 m
Length Waterline (LWL):
8.76 m
Beam:
3.51 m
Draft (Max):
1.96 m
Weight & Ballast
Displacement:
5,602 kg
Sail Plan
Foresail Area:
24.19 m²
Mainsail Area:
31.98 m²
Total Sail Area (calculated):
56.17 m²
Sail Area (reported):
56.21 m²
I (Fore Triangle Height):
12.50 m
J (Fore Triangle Base):
3.87 m
P (Mainsail Hoist):
13.72 m
E (Boom Length):
4.66 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD11
Engine Power:
23 HP
Performance Ratios
Hull Speed:
7.18 knots
SA/Displacement (Calculated):
17.81
SA/Displacement (Reported):
18.18
Displacement/Length:
232.01
Comfort Ratio:
23.86
Capsize Screening:
1.99
S-Number:
2.47
Notes
Shoal draft version:
