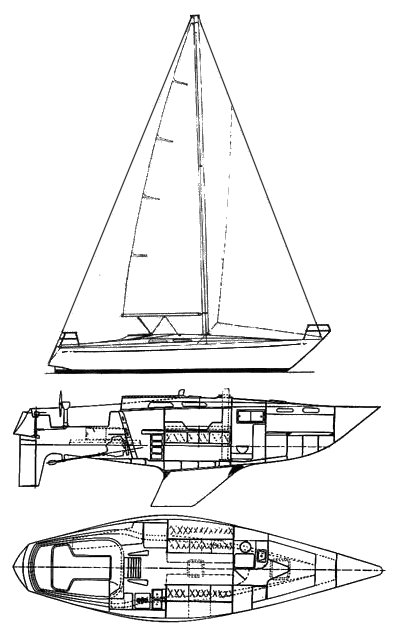

SHE 36
Built by South Hants Engineering (UK)
• Designed by Sparkman & Stephens
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1977
Dimensions
Length Overall (LOA):
10.82 m
Length Waterline (LWL):
8.99 m
Beam:
3.20 m
Draft (Max):
1.92 m
Weight & Ballast
Displacement:
6,613 kg
Ballast:
2,449 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
27.30 m²
Mainsail Area:
17.23 m²
Total Sail Area (calculated):
44.53 m²
Sail Area (reported):
44.50 m²
I (Fore Triangle Height):
12.53 m
J (Fore Triangle Base):
4.36 m
P (Mainsail Hoist):
11.31 m
E (Boom Length):
3.05 m
Engine & Systems
Engine Make:
Bukh
Engine Type:
Diesel
Engine Power:
20 HP
Fuel Capacity:
45 L
Water Capacity:
98 L
Performance Ratios
Hull Speed:
7.28 knots
SA/Displacement (Calculated):
12.64
SA/Displacement (Reported):
12.89
Ballast/Disp Ratio:
37.04%
Displacement/Length:
253.54
Comfort Ratio:
31.41
Capsize Screening:
1.72
S-Number:
1.72
Notes
S&S design #2166. Originally designed as an IOR 3/4 ton racer. The NORTHSTAR 1500 and HUGHES 35 built in Canada, (among others) were based on this same hull design.
