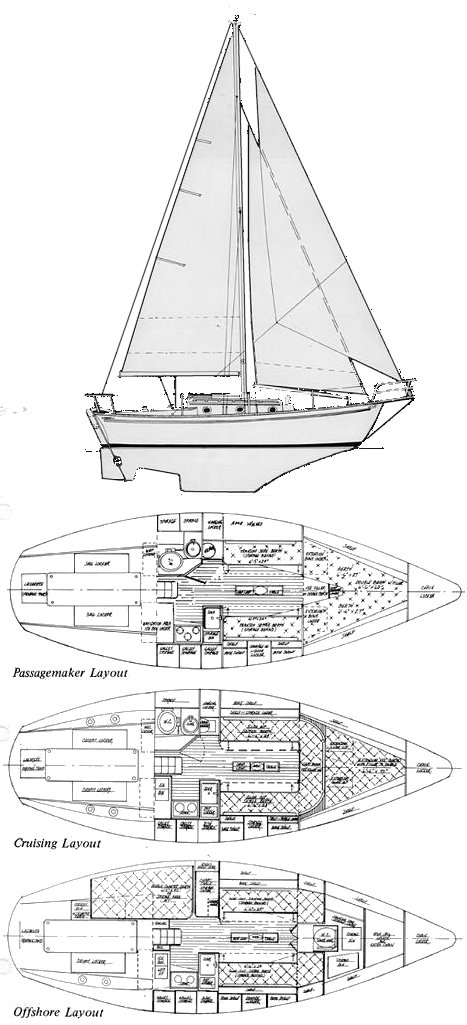

SHANNON 28
Built by Shannon Boat Company (USA)
• Designed by Walter Shultz
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Cutter
Construction:
FG
First Built:
1978
Last Built:
1985
Number Built:
50
Dimensions
Length Overall (LOA):
8.53 m
Length Waterline (LWL):
6.99 m
Beam:
2.90 m
Draft (Max):
1.30 m
Headroom:
1.88 m
Weight & Ballast
Displacement:
4,218 kg
Ballast:
1,633 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
26.48 m²
Mainsail Area:
14.86 m²
Total Sail Area (calculated):
41.34 m²
Sail Area (reported):
43.66 m²
I (Fore Triangle Height):
11.58 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
9.75 m
E (Boom Length):
3.05 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GMF
Engine Power:
13 HP
Fuel Capacity:
76 L
Water Capacity:
246 L
Performance Ratios
Hull Speed:
6.42 knots
SA/Displacement (Calculated):
15.84
SA/Displacement (Reported):
17.06
Ballast/Disp Ratio:
38.71%
Displacement/Length:
344.82
Comfort Ratio:
29.31
Capsize Screening:
1.81
S-Number:
1.38
