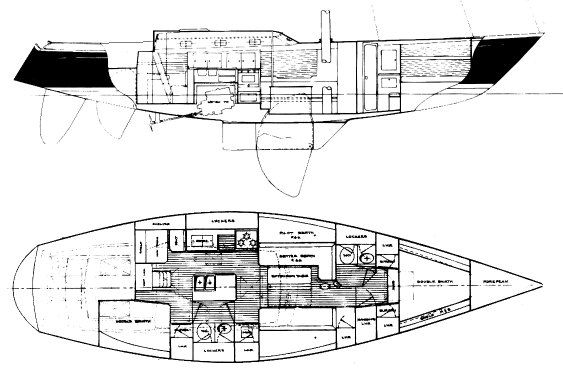

SEGUIN 48
Built by Lyman Morse Boatbuilding (USA)
• Designed by Craig Walters
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1986
Dimensions
Length Overall (LOA):
14.83 m
Length Waterline (LWL):
11.43 m
Beam:
4.19 m
Draft (Max):
2.82 m
Draft (Min):
1.50 m
Weight & Ballast
Displacement:
11,929 kg
Ballast:
4,763 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
61.45 m²
Mainsail Area:
47.25 m²
Total Sail Area (calculated):
108.70 m²
Sail Area (reported):
108.70 m²
I (Fore Triangle Height):
19.29 m
J (Fore Triangle Base):
6.37 m
P (Mainsail Hoist):
17.62 m
E (Boom Length):
5.36 m
Engine & Systems
Performance Ratios
Hull Speed:
8.21 knots
SA/Displacement (Calculated):
20.82
SA/Displacement (Reported):
21.25
Ballast/Disp Ratio:
39.92%
Displacement/Length:
222.65
Comfort Ratio:
30.33
Capsize Screening:
1.85
S-Number:
2.87
Notes
Also called MONHEGAN 48.
