SEAFARER 29
Built by Seafarer
• Designed by McCurdy & Rhodes
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG/solid laminate
First Built:
1972
Dimensions
Length Overall (LOA):
8.75 m
Length Waterline (LWL):
6.48 m
Beam:
2.74 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
2,998 kg
Ballast:
1,161 kg
Sail Plan
Foresail Area:
17.90 m²
Mainsail Area:
15.22 m²
Total Sail Area (calculated):
33.12 m²
Sail Area (reported):
33.17 m²
I (Fore Triangle Height):
10.21 m
J (Fore Triangle Base):
3.51 m
P (Mainsail Hoist):
8.69 m
E (Boom Length):
3.51 m
Engine & Systems
Performance Ratios
Hull Speed:
6.18 knots
SA/Displacement (Calculated):
15.93
SA/Displacement (Reported):
16.27
Ballast/Disp Ratio:
38.73%
Displacement/Length:
307.52
Comfort Ratio:
23.30
Capsize Screening:
1.92
S-Number:
1.63
Notes

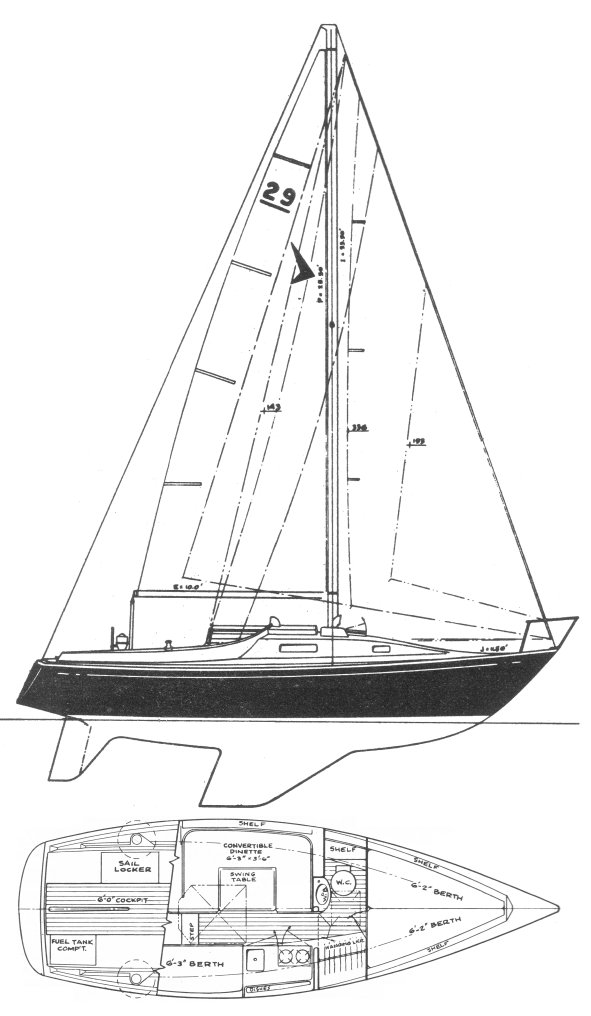

Besides the standard 'trunk cabin' version (shown in photo), a 'Futura' raised deck model (drawing) was also available. Some were sold as kits. Thanks to SEAFARER 29 owner Steve Birkelund for providing photo and updated information on this yacht.
