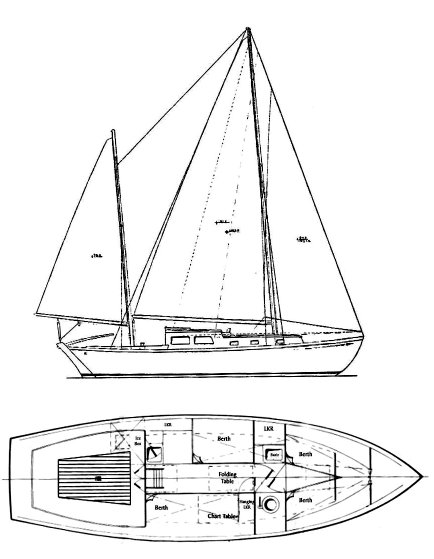

BERMUDA 30 (CHEOY LEE)
Built by Cheoy Lee Shipyard Ltd.(HK)
• Designed by Herreshoff
General Information
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Masthead Ketch
Construction:
Wood/FG
First Built:
1962
Last Built:
1967
Dimensions
Length Overall (LOA):
9.02 m
Length Waterline (LWL):
7.32 m
Beam:
2.67 m
Draft (Max):
1.12 m
Weight & Ballast
Displacement:
4,590 kg
Sail Plan
Foresail Area:
11.57 m²
Mainsail Area:
16.30 m²
Total Sail Area (calculated):
27.87 m²
Sail Area (reported):
35.02 m²
I (Fore Triangle Height):
9.14 m
J (Fore Triangle Base):
2.53 m
P (Mainsail Hoist):
8.23 m
E (Boom Length):
3.96 m
Engine & Systems
Performance Ratios
Hull Speed:
6.56 knots
SA/Displacement (Calculated):
10.09
SA/Displacement (Reported):
12.94
Displacement/Length:
326.81
Comfort Ratio:
33.88
Capsize Screening:
1.62
S-Number:
1.00
Notes
The BERMUDA 30 was an adaptation of the Herreshoff H-28 offshore ketch. One of the first 'yachts' built by Cheoy Lee, she was available in wood (teak) and later, with a fiberglass hull and wood deck/superstructure.
