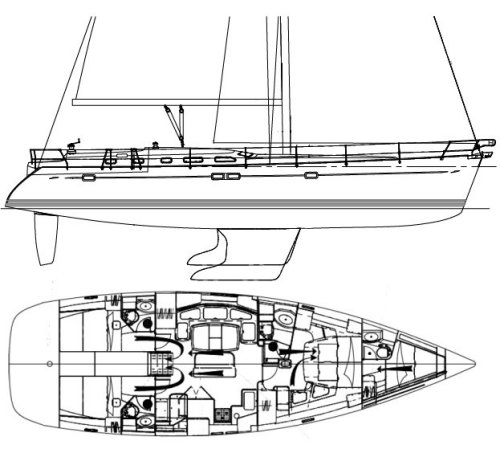

BENETEAU 523
Built by Beneteau
• Designed by Groupe Finot
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2001
Dimensions
Length Overall (LOA):
16.25 m
Length Waterline (LWL):
14.63 m
Beam:
4.88 m
Draft (Max):
2.35 m
Weight & Ballast
Displacement:
14,000 kg
Ballast:
4,974 kg
Sail Plan
Foresail Area:
62.92 m²
Mainsail Area:
61.96 m²
Total Sail Area (calculated):
124.88 m²
Sail Area (reported):
150.87 m²
I (Fore Triangle Height):
19.88 m
J (Fore Triangle Base):
6.33 m
P (Mainsail Hoist):
18.25 m
E (Boom Length):
6.79 m
Engine & Systems
Engine Type:
Diesel
Fuel Capacity:
750 L
Water Capacity:
450 L
Performance Ratios
Hull Speed:
9.28 knots
SA/Displacement (Calculated):
21.50
SA/Displacement (Reported):
26.52
Ballast/Disp Ratio:
35.53%
Displacement/Length:
124.59
Comfort Ratio:
23.95
Capsize Screening:
2.05
S-Number:
4.51
Notes
Shallow draft version - draft: 5.92'
