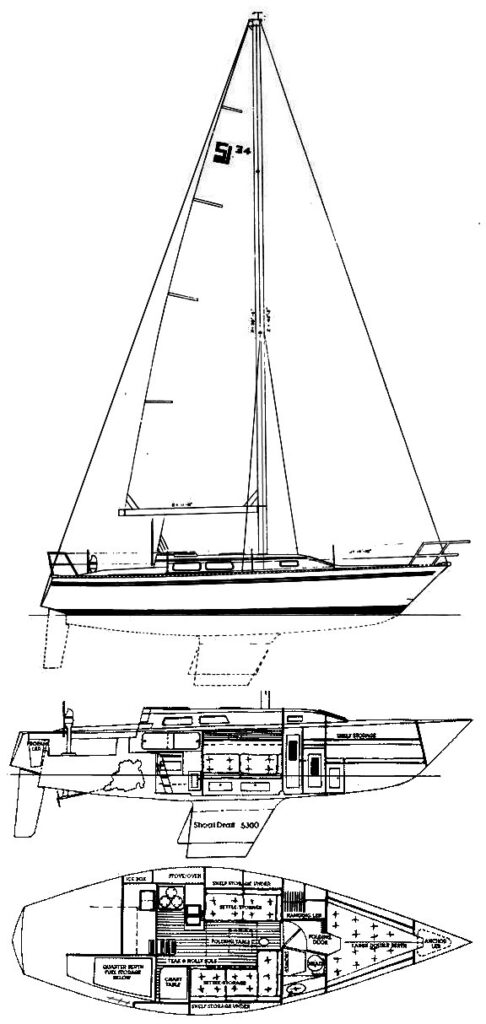

SAN JUAN 34
Built by Clark Boat Co. (USA)
• Designed by Hein Driehuyzen/Don Clark
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1980
Last Built:
1986
Dimensions
Length Overall (LOA):
10.30 m
Length Waterline (LWL):
8.51 m
Beam:
3.33 m
Draft (Max):
1.80 m
Headroom:
1.91 m
Weight & Ballast
Displacement:
4,763 kg
Ballast:
2,177 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
30.81 m²
Mainsail Area:
20.18 m²
Total Sail Area (calculated):
50.99 m²
Sail Area (reported):
50.91 m²
I (Fore Triangle Height):
13.79 m
J (Fore Triangle Base):
4.47 m
P (Mainsail Hoist):
12.04 m
E (Boom Length):
3.35 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM
Engine Power:
24 HP
Fuel Capacity:
83 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.08 knots
SA/Displacement (Calculated):
18.02
SA/Displacement (Reported):
18.35
Ballast/Disp Ratio:
45.71%
Displacement/Length:
215.37
Comfort Ratio:
22.64
Capsize Screening:
2.00
S-Number:
2.68
Notes
Before the molds were sold to Clark Boat Co, this was the CROWN 34, built by Calgan Marine (CAN).
