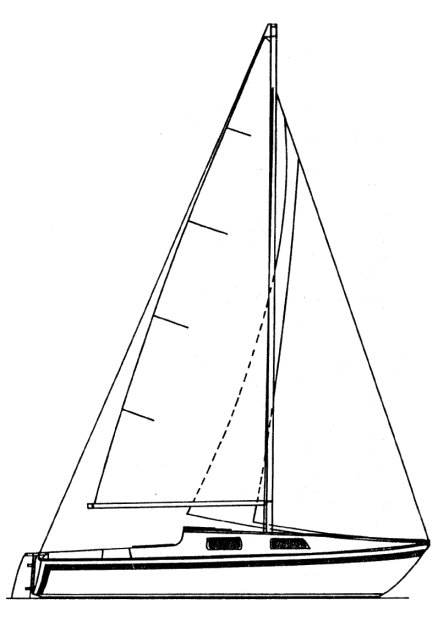

SAN JUAN 21-2
Built by Clark Boat Co. (USA)
• Designed by Don Clark
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1974
Dimensions
Length Overall (LOA):
6.25 m
Length Waterline (LWL):
5.18 m
Beam:
2.13 m
Draft (Max):
1.22 m
Draft (Min):
0.21 m
Weight & Ballast
Displacement:
567 kg
Ballast:
181 kg
Sail Plan
Foresail Area:
8.58 m²
Mainsail Area:
9.35 m²
Total Sail Area (calculated):
17.93 m²
Sail Area (reported):
17.93 m²
I (Fore Triangle Height):
6.86 m
J (Fore Triangle Base):
2.50 m
P (Mainsail Hoist):
7.01 m
E (Boom Length):
2.67 m
Engine & Systems
Performance Ratios
Hull Speed:
5.52 knots
SA/Displacement (Calculated):
26.17
SA/Displacement (Reported):
26.66
Ballast/Disp Ratio:
32.00%
Displacement/Length:
113.58
Comfort Ratio:
8.01
Capsize Screening:
2.60
S-Number:
5.40
Notes
The SAN JUAN MARK II was introduced in 1974 after nearly 1000 of the earlier versions had been built. The MARK II, is a raised deck version of the MARK I with the companionway moved aft to allow for more interior space. The Mark I and Mark II were produced concurrently, until the last Mark I was produced in 1977.
