S2 6.8
Built by S2 Yachts (USA)
• Designed by Arthur Edmonds/Don Wennersten
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG (solid) hull/Balsa cored deck
First Built:
1976
Last Built:
1979
Number Built:
150
Dimensions
Length Overall (LOA):
6.81 m
Length Waterline (LWL):
5.56 m
Beam:
2.44 m
Draft (Max):
0.61 m
Weight & Ballast
Displacement:
1,315 kg
Ballast:
499 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
11.29 m²
Mainsail Area:
8.84 m²
Total Sail Area (calculated):
20.13 m²
Sail Area (reported):
20.16 m²
I (Fore Triangle Height):
8.14 m
J (Fore Triangle Base):
2.77 m
P (Mainsail Hoist):
7.25 m
E (Boom Length):
2.44 m
Engine & Systems
Performance Ratios
Hull Speed:
5.72 knots
SA/Displacement (Calculated):
16.77
SA/Displacement (Reported):
17.12
Ballast/Disp Ratio:
37.93%
Displacement/Length:
212.99
Comfort Ratio:
14.42
Capsize Screening:
2.25
S-Number:
2.57
Notes

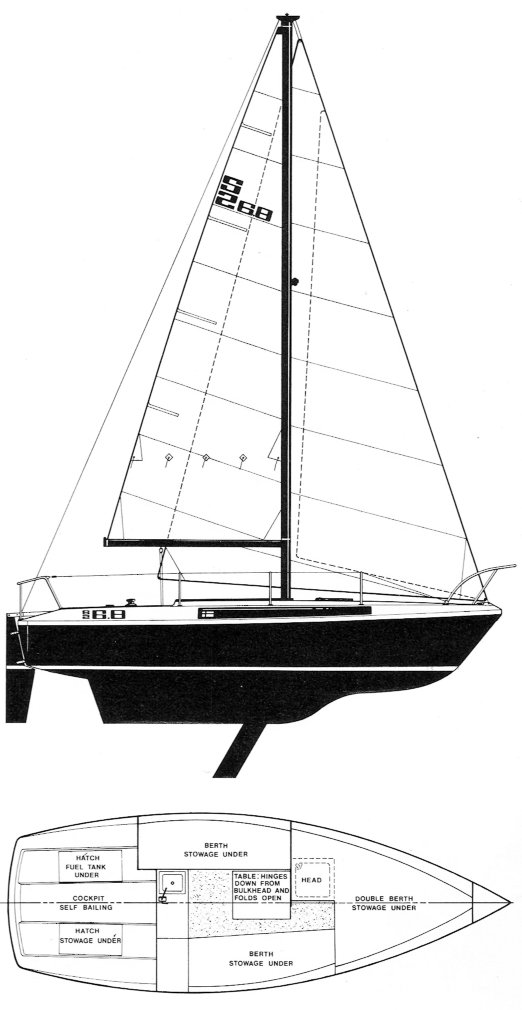

The S2 6.8 EXCITER model (shown in the photo) was part of a package that included red and orange accent stripes. A cast iron centerboard was also an option. (draft with board up is the same as the standard model. Draft (BD) is 4.5'.
