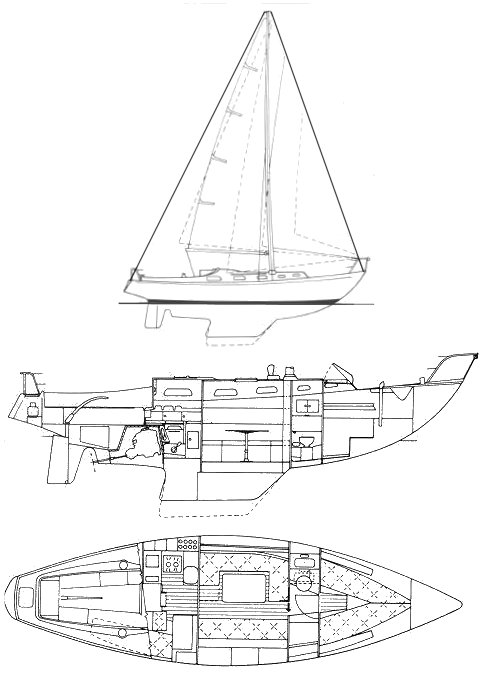

RIVAL 34
Built by Southern Shipbuilding (UK)
• Designed by Peter Brett
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1972
Number Built:
174
Dimensions
Length Overall (LOA):
10.36 m
Length Waterline (LWL):
7.57 m
Beam:
2.95 m
Draft (Max):
1.78 m
Weight & Ballast
Displacement:
5,398 kg
Ballast:
2,130 kg
Sail Plan
Foresail Area:
22.22 m²
Mainsail Area:
19.73 m²
Total Sail Area (calculated):
41.95 m²
Sail Area (reported):
41.90 m²
I (Fore Triangle Height):
11.50 m
J (Fore Triangle Base):
3.86 m
P (Mainsail Hoist):
11.51 m
E (Boom Length):
3.43 m
Engine & Systems
Performance Ratios
Hull Speed:
6.68 knots
SA/Displacement (Calculated):
13.63
SA/Displacement (Reported):
13.89
Ballast/Disp Ratio:
39.46%
Displacement/Length:
347.03
Comfort Ratio:
32.46
Capsize Screening:
1.70
S-Number:
1.22
Notes
Shoal draft: 4.67'.
