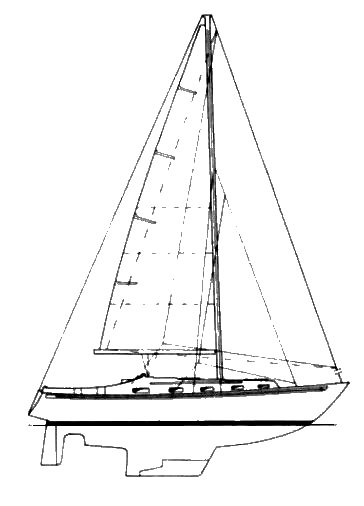

RIVAL 36
Built by Rival/Bowman (UK)
• Designed by Peter Brett
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1980
Number Built:
78
Dimensions
Length Overall (LOA):
10.92 m
Length Waterline (LWL):
8.28 m
Beam:
3.35 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
6,464 kg
Ballast:
2,531 kg
Sail Plan
Foresail Area:
27.45 m²
Mainsail Area:
25.75 m²
Total Sail Area (calculated):
53.20 m²
Sail Area (reported):
53.23 m²
I (Fore Triangle Height):
13.59 m
J (Fore Triangle Base):
4.04 m
P (Mainsail Hoist):
12.80 m
E (Boom Length):
4.02 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD2030
Engine Power:
29 HP
Fuel Capacity:
182 L
Water Capacity:
201 L
Performance Ratios
Hull Speed:
6.98 knots
SA/Displacement (Calculated):
15.33
SA/Displacement (Reported):
15.65
Ballast/Disp Ratio:
39.16%
Displacement/Length:
317.17
Comfort Ratio:
30.35
Capsize Screening:
1.82
S-Number:
1.52
Notes
A keel/centerboard and Sheel keel version was also available.
