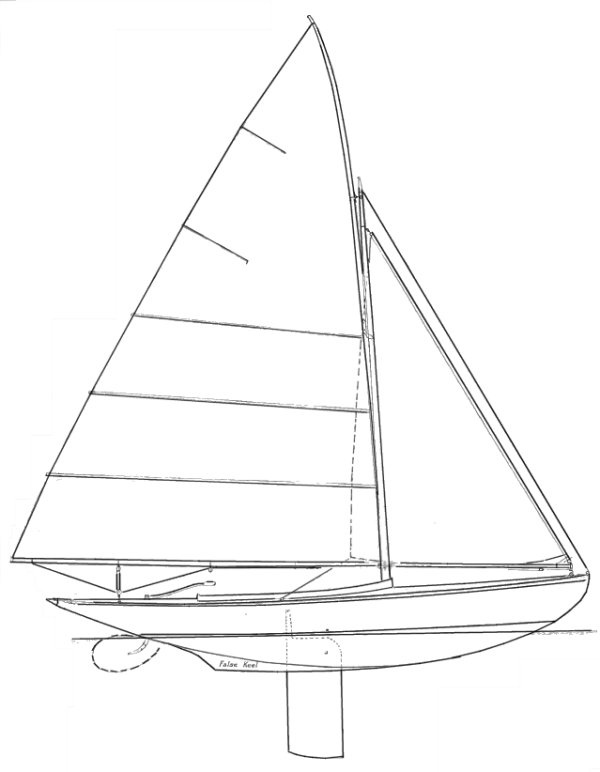

BELFAST LOUGH ONE-DESIGN (CLASS III)
Built by William Roberts (IRELAND)
• Designed by Linton Hope,
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Cutter
Construction:
Wood
First Built:
1898
Number Built:
10
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
5.18 m
Beam:
1.98 m
Draft (Max):
1.68 m
Draft (Min):
0.46 m
Weight & Ballast
Displacement:
1,361 kg
Sail Plan
Sail Area (reported):
25.64 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.52 knots
SA/Displacement (Reported):
21.28
Displacement/Length:
272.60
Comfort Ratio:
20.04
Capsize Screening:
1.81
Notes
Just before the end of the 19th century, there were 3 types of boats designated as 'Belfast Lough One Design'. Class I, (9 built), Class II (SEABIRD 9 built) Class III (JEWELL - boats named after precious stones), the smallest with an initial 10 built.
