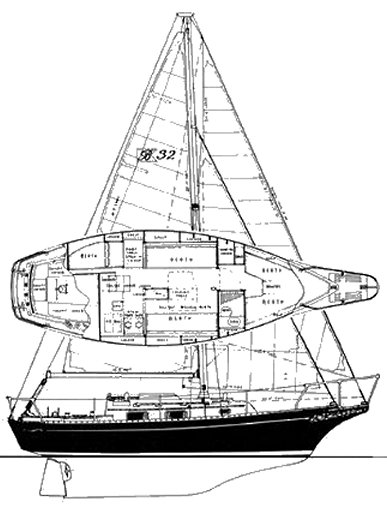

BAYFIELD 30/32
Built by Bayfield Boat Yard Ltd. (CAN)
• Designed by Ted Gozzard
General Information
Hull Type:
Long Keel
Rigging Type:
Cutter
Construction:
FG
First Built:
1973
Dimensions
Length Overall (LOA):
9.75 m
Length Waterline (LWL):
7.09 m
Beam:
3.20 m
Draft (Max):
1.14 m
Weight & Ballast
Displacement:
4,354 kg
Ballast:
1,814 kg
Sail Plan
Foresail Area:
22.76 m²
Mainsail Area:
17.42 m²
Total Sail Area (calculated):
40.18 m²
Sail Area (reported):
40.13 m²
I (Fore Triangle Height):
10.67 m
J (Fore Triangle Base):
4.27 m
P (Mainsail Hoist):
9.14 m
E (Boom Length):
3.81 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
21 HP
Fuel Capacity:
76 L
Performance Ratios
Hull Speed:
6.46 knots
SA/Displacement (Calculated):
15.07
SA/Displacement (Reported):
15.35
Ballast/Disp Ratio:
41.67%
Displacement/Length:
341.00
Comfort Ratio:
25.02
Capsize Screening:
1.98
S-Number:
1.35
Notes
We understand 5 hulls were built with a tall rig. SA 662 sq ft. These were called the 32C.
