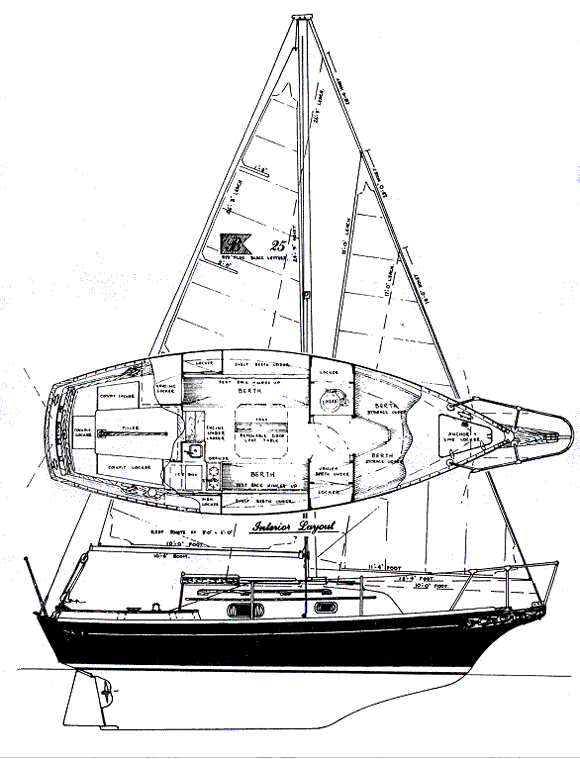

BAYFIELD 25
Built by Bayfield Boat Yard
• Designed by Ted Gozzard
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Last Built:
1984
Dimensions
Length Overall (LOA):
7.62 m
Length Waterline (LWL):
6.00 m
Beam:
2.44 m
Draft (Max):
0.89 m
Headroom:
1.83 m
Max Height:
10.16 m
Weight & Ballast
Displacement:
1,588 kg
Ballast:
590 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
15.33 m²
Mainsail Area:
11.50 m²
Total Sail Area (calculated):
26.83 m²
Sail Area (reported):
22.30 m²
I (Fore Triangle Height):
9.14 m
J (Fore Triangle Base):
3.35 m
P (Mainsail Hoist):
7.54 m
E (Boom Length):
3.05 m
Engine & Systems
Engine Make:
Petters
Engine Type:
Diesel
Engine Power:
8 HP
Fuel Capacity:
45 L
Water Capacity:
45 L
Performance Ratios
Hull Speed:
5.94 knots
SA/Displacement (Calculated):
19.71
SA/Displacement (Reported):
16.70
Ballast/Disp Ratio:
37.14%
Displacement/Length:
205.31
Comfort Ratio:
15.93
Capsize Screening:
2.11
S-Number:
2.98
Notes
Originally this model was called the BAYFIELD 23. In 1975 it is advertised as the BAYFIELD 23/25. A year later it is called the BAYFIELD 25.
