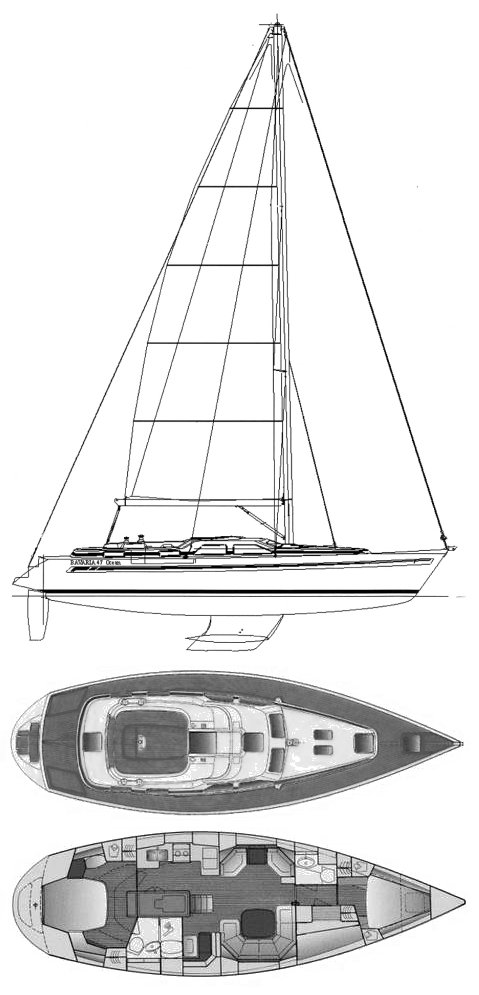

BAVARIA OCEAN 47 CC
Built by Bavaria Yachtbau
• Designed by J&J Design
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1999
Last Built:
2002
Number Built:
25
Dimensions
Length Overall (LOA):
14.68 m
Length Waterline (LWL):
12.25 m
Beam:
4.45 m
Draft (Max):
2.00 m
Max Height:
18.78 m
Weight & Ballast
Displacement:
11,900 kg
Ballast:
4,500 kg
Sail Plan
Foresail Area:
50.18 m²
Mainsail Area:
39.27 m²
Total Sail Area (calculated):
89.45 m²
Sail Area (reported):
89.47 m²
I (Fore Triangle Height):
17.25 m
J (Fore Triangle Base):
5.82 m
P (Mainsail Hoist):
15.25 m
E (Boom Length):
5.15 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
TMD 22
Engine Power:
78 HP
Performance Ratios
Hull Speed:
8.50 knots
SA/Displacement (Calculated):
17.16
SA/Displacement (Reported):
17.52
Ballast/Disp Ratio:
37.82%
Displacement/Length:
180.42
Comfort Ratio:
26.80
Capsize Screening:
1.97
S-Number:
3.01
Notes
Draft wing keel vers. 1.7m/5.58'
