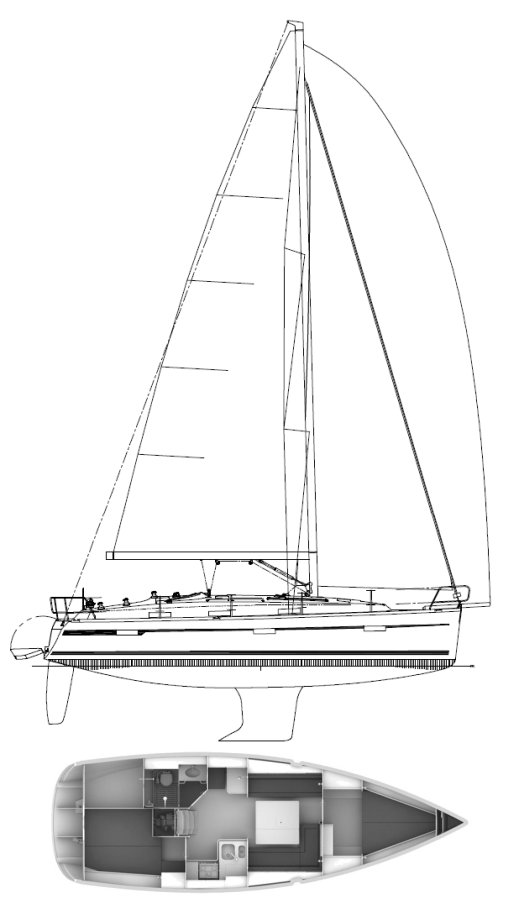

BAVARIA CRUISER 36 (FARR)
Built by Bavaria Yachtbau
• Designed by Farr Yacht Design
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2010
Dimensions
Length Overall (LOA):
11.30 m
Length Waterline (LWL):
9.90 m
Beam:
3.67 m
Draft (Max):
1.97 m
Max Height:
16.98 m
Weight & Ballast
Displacement:
7,000 kg
Ballast:
2,080 kg
Sail Plan
Foresail Area:
26.30 m²
Mainsail Area:
34.72 m²
Total Sail Area (calculated):
61.02 m²
Sail Area (reported):
68.93 m²
I (Fore Triangle Height):
14.10 m
J (Fore Triangle Base):
3.73 m
P (Mainsail Hoist):
13.62 m
E (Boom Length):
5.10 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
D1-20
Fuel Capacity:
151 L
Water Capacity:
208 L
Performance Ratios
Hull Speed:
7.64 knots
SA/Displacement (Calculated):
16.68
SA/Displacement (Reported):
19.22
Ballast/Disp Ratio:
29.72%
Displacement/Length:
201.06
Comfort Ratio:
25.62
Capsize Screening:
1.94
S-Number:
2.70
Notes
Shallow draft: 1.63 m/5.35'
