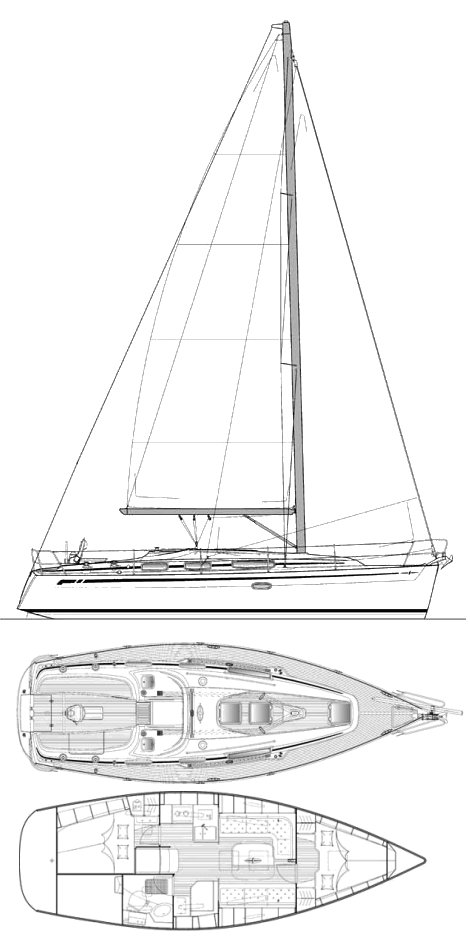

BAVARIA CRUISER 34
Built by Bavaria
• Designed by J & J Design
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2000
Last Built:
2009
Dimensions
Length Overall (LOA):
10.71 m
Length Waterline (LWL):
9.20 m
Beam:
3.60 m
Draft (Max):
1.93 m
Headroom:
1.87 m
Max Height:
14.84 m
Weight & Ballast
Displacement:
5,700 kg
Ballast:
1,440 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
59.20 m²
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel; Saildrive
Engine Model:
D1-20
Engine Power:
18 HP
Fuel Capacity:
150 L
Water Capacity:
210 L
Performance Ratios
Hull Speed:
7.36 knots
SA/Displacement (Reported):
18.93
Ballast/Disp Ratio:
25.27%
Displacement/Length:
204.08
Comfort Ratio:
22.89
Capsize Screening:
2.04
Notes
Hull length: 10.45m / 34.28ft
