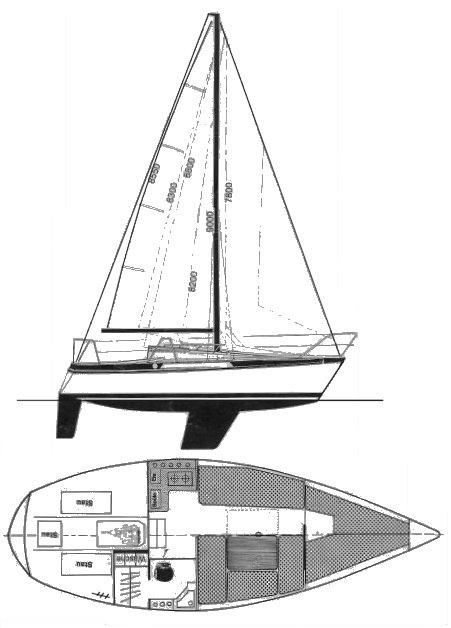

BAVARIA 770
Built by Bavaria Yachts (GER)
• Designed by Axel Mohnhaupt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1981
Dimensions
Length Overall (LOA):
7.70 m
Length Waterline (LWL):
6.20 m
Beam:
2.64 m
Draft (Max):
1.30 m
Weight & Ballast
Displacement:
1,547 kg
Sail Plan
Foresail Area:
14.26 m²
Mainsail Area:
11.95 m²
Total Sail Area (calculated):
26.21 m²
Sail Area (reported):
26.20 m²
I (Fore Triangle Height):
9.08 m
J (Fore Triangle Base):
3.14 m
P (Mainsail Hoist):
8.60 m
E (Boom Length):
2.78 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD5A
Engine Power:
10 HP
Fuel Capacity:
189 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
6.04 knots
SA/Displacement (Calculated):
19.59
SA/Displacement (Reported):
19.97
Displacement/Length:
181.17
Comfort Ratio:
13.61
Capsize Screening:
2.31
S-Number:
3.30
