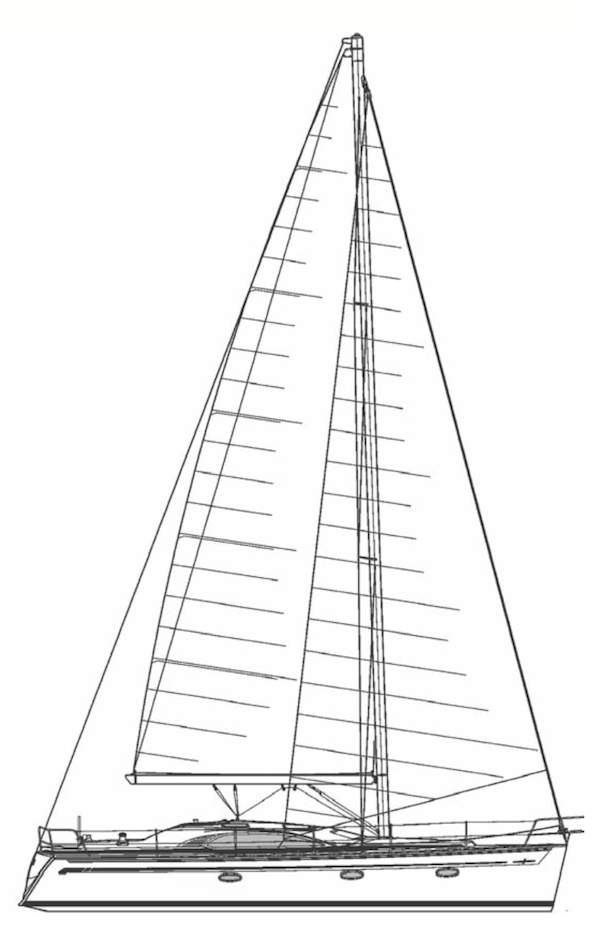

BAVARIA 40 VISION
Built by Bavaria Yachts (GER)
• Designed by J&J Design
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2007
Last Built:
2011
Dimensions
Length Overall (LOA):
12.70 m
Length Waterline (LWL):
10.60 m
Beam:
3.99 m
Draft (Max):
1.75 m
Headroom:
2.05 m
Max Height:
19.50 m
Weight & Ballast
Displacement:
8,950 kg
Ballast:
3,040 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
95.80 m²
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
D2-40
Engine Power:
38 HP
Fuel Capacity:
210 L
Water Capacity:
360 L
Performance Ratios
Hull Speed:
7.90 knots
SA/Displacement (Reported):
22.68
Ballast/Disp Ratio:
33.97%
Displacement/Length:
209.37
Comfort Ratio:
26.93
Capsize Screening:
1.94
Notes
LOD: 11.99m / 39.33 ft.
