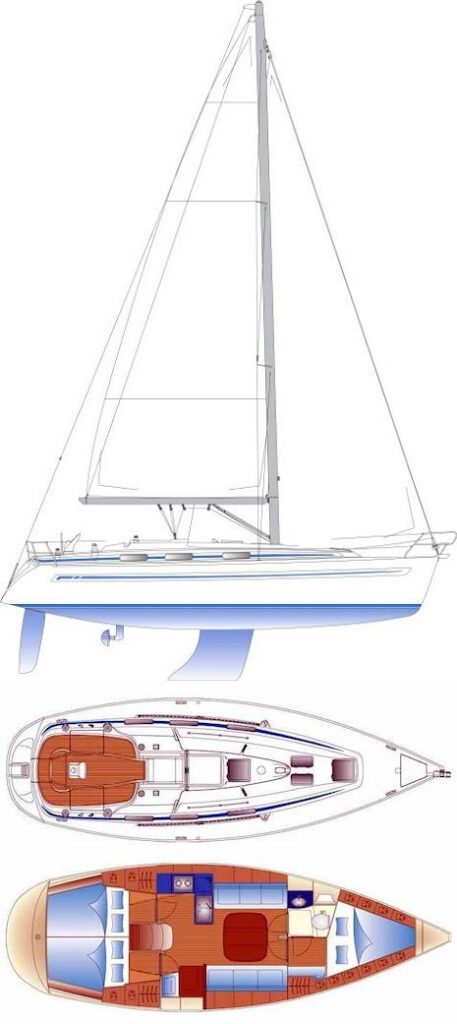

BAVARIA 36 (2002-2004)
Built by Bavaria Yachts (GER)
• Designed by J&J Design
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2002
Last Built:
2004
Dimensions
Length Overall (LOA):
11.40 m
Length Waterline (LWL):
9.40 m
Beam:
3.60 m
Draft (Max):
1.65 m
Max Height:
15.11 m
Weight & Ballast
Displacement:
5,500 kg
Ballast:
1,500 kg
Ballast Type:
Cast iron
Sail Plan
Sail Area (reported):
37.67 m²
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD 2020
Engine Power:
19 HP
Fuel Capacity:
150 L
Water Capacity:
300 L
Performance Ratios
Hull Speed:
7.44 knots
SA/Displacement (Reported):
12.34
Ballast/Disp Ratio:
27.27%
Displacement/Length:
184.54
Comfort Ratio:
21.32
Capsize Screening:
2.06
Notes
LOD: 10.96 m / 35.96 ft.
