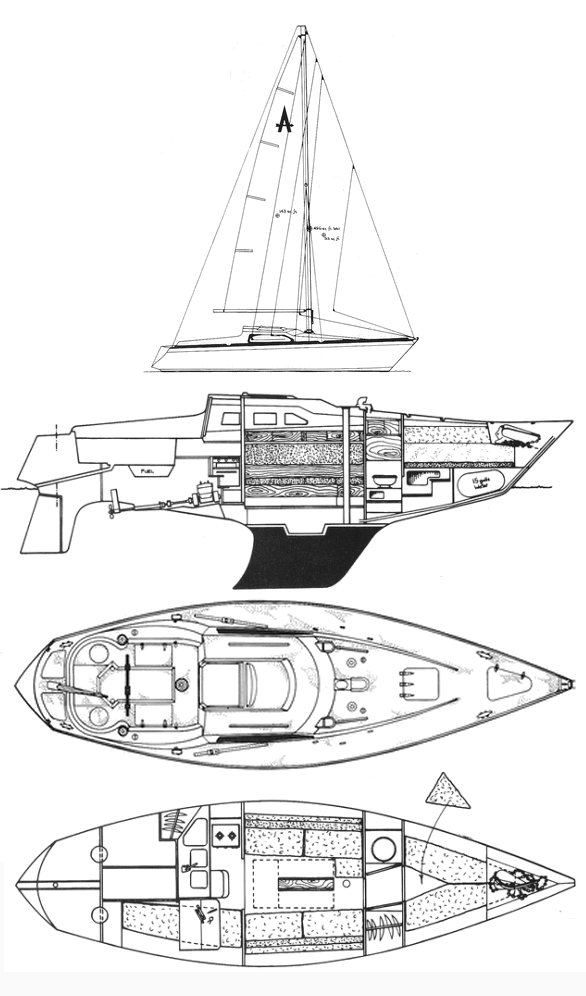

ACHILLES 9M
Built by Butler Mouldings Ltd. (UK)
• Designed by Chris Butler
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Last Built:
1984
Number Built:
100
Dimensions
Length Overall (LOA):
9.09 m
Length Waterline (LWL):
7.75 m
Beam:
2.74 m
Draft (Max):
1.68 m
Weight & Ballast
Displacement:
3,175 kg
Ballast:
1,360 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
18.81 m²
Mainsail Area:
14.04 m²
Total Sail Area (calculated):
32.85 m²
Sail Area (reported):
32.89 m²
I (Fore Triangle Height):
10.77 m
J (Fore Triangle Base):
3.49 m
P (Mainsail Hoist):
9.45 m
E (Boom Length):
2.97 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Fuel Capacity:
57 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
6.76 knots
SA/Displacement (Calculated):
15.21
SA/Displacement (Reported):
15.53
Ballast/Disp Ratio:
42.83%
Displacement/Length:
190.25
Comfort Ratio:
21.67
Capsize Screening:
1.88
S-Number:
2.64
