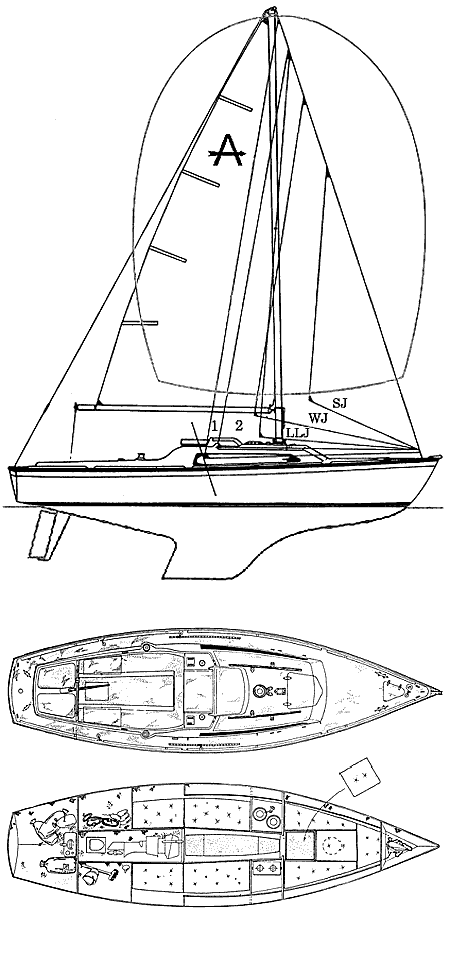

ACHILLES 24
Built by Butler Moldings Ltd. (UK)
• Designed by Oliver Lee /Chris Butler
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1968
Last Built:
1985
Number Built:
600
Dimensions
Length Overall (LOA):
7.24 m
Length Waterline (LWL):
5.94 m
Beam:
2.16 m
Draft (Max):
1.14 m
Weight & Ballast
Displacement:
1,179 kg
Ballast:
596 kg
Sail Plan
Foresail Area:
9.17 m²
Mainsail Area:
10.34 m²
Total Sail Area (calculated):
19.51 m²
Sail Area (reported):
19.51 m²
I (Fore Triangle Height):
7.85 m
J (Fore Triangle Base):
2.34 m
P (Mainsail Hoist):
6.78 m
E (Boom Length):
3.05 m
Engine & Systems
Performance Ratios
Hull Speed:
5.92 knots
SA/Displacement (Calculated):
17.48
SA/Displacement (Reported):
17.81
Ballast/Disp Ratio:
50.54%
Displacement/Length:
156.54
Comfort Ratio:
14.23
Capsize Screening:
2.06
S-Number:
3.39
Notes
Based on the AJAX (open cockpit day boat) and modified by the builder, Chris Butler.
