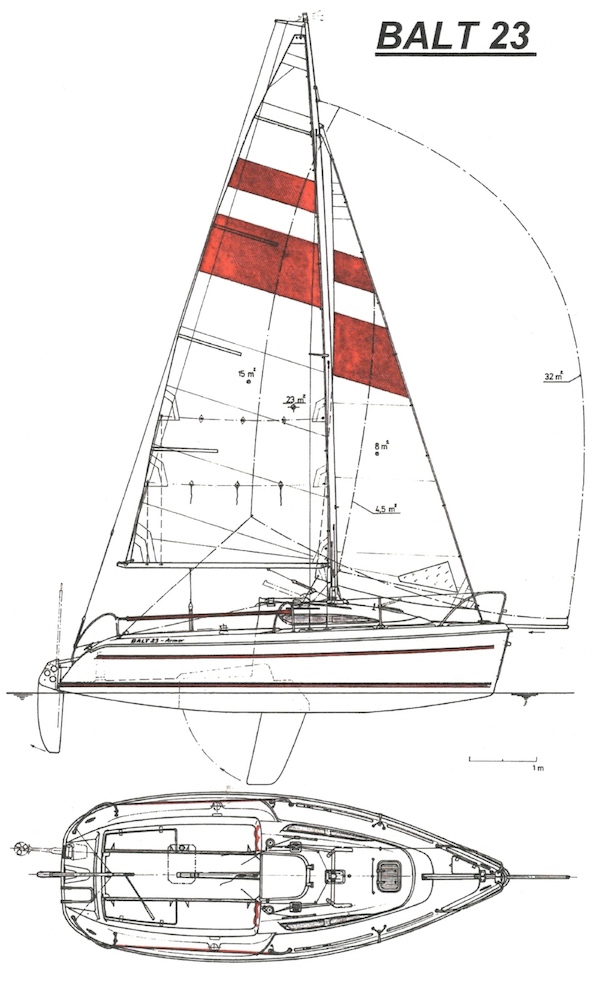

BALT 23
Built by Balt-Yacht
• Designed by Jacek Centkowski
General Information
Hull Type:
Cbrd w/outboard rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1990
Dimensions
Length Overall (LOA):
7.05 m
Length Waterline (LWL):
6.30 m
Beam:
2.54 m
Draft (Max):
1.45 m
Draft (Min):
0.30 m
Headroom:
1.45 m
Max Height:
8.75 m
Weight & Ballast
Displacement:
1,350 kg
Ballast:
415 kg
Sail Plan
Foresail Area:
8.06 m²
Mainsail Area:
12.11 m²
Total Sail Area (calculated):
20.17 m²
Sail Area (reported):
23.00 m²
I (Fore Triangle Height):
7.50 m
J (Fore Triangle Base):
2.15 m
P (Mainsail Hoist):
7.95 m
E (Boom Length):
3.05 m
Engine & Systems
Performance Ratios
Hull Speed:
6.09 knots
SA/Displacement (Calculated):
16.51
SA/Displacement (Reported):
19.19
Ballast/Disp Ratio:
30.75%
Displacement/Length:
150.44
Comfort Ratio:
12.76
Capsize Screening:
2.32
S-Number:
3.34
Notes
Hull length: 6.76m / 22.18ft
