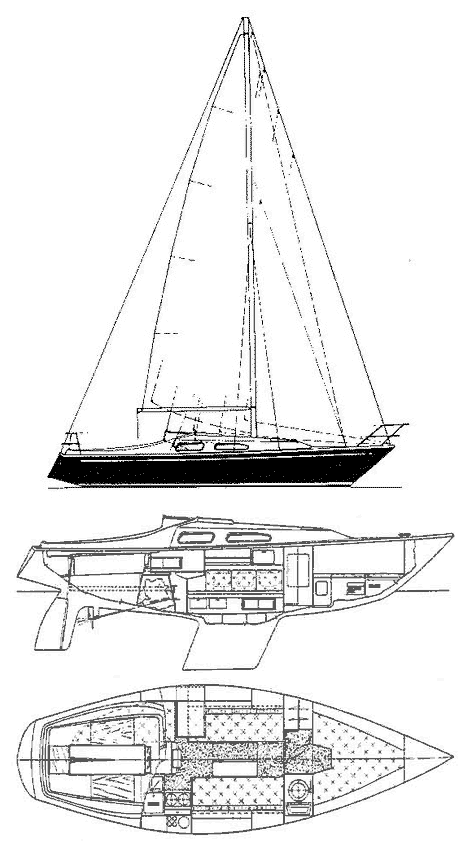

BALLAD 30 (ALBIN)
Built by Albin Marine/Shipman Marine (SWE)
• Designed by Rolf Magnusson
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1971
Last Built:
1982
Number Built:
1500
Dimensions
Length Overall (LOA):
9.14 m
Length Waterline (LWL):
6.90 m
Beam:
2.96 m
Draft (Max):
1.55 m
Max Height:
12.40 m
Weight & Ballast
Displacement:
3,300 kg
Ballast:
1,550 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
21.08 m²
Mainsail Area:
13.85 m²
Total Sail Area (calculated):
34.93 m²
Sail Area (reported):
43.90 m²
I (Fore Triangle Height):
11.30 m
J (Fore Triangle Base):
3.73 m
P (Mainsail Hoist):
9.75 m
E (Boom Length):
2.84 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD 6A
Engine Power:
10 HP
Fuel Capacity:
33 L
Water Capacity:
65 L
Performance Ratios
Hull Speed:
6.38 knots
SA/Displacement (Calculated):
15.76
SA/Displacement (Reported):
20.20
Ballast/Disp Ratio:
46.97%
Displacement/Length:
279.88
Comfort Ratio:
21.91
Capsize Screening:
2.01
S-Number:
1.83
Notes
One of the most popular sailing yachts of this size ever built in Scandinavia. An evolution of the JOKER S30(1968). (IOR 1/2 ton)
