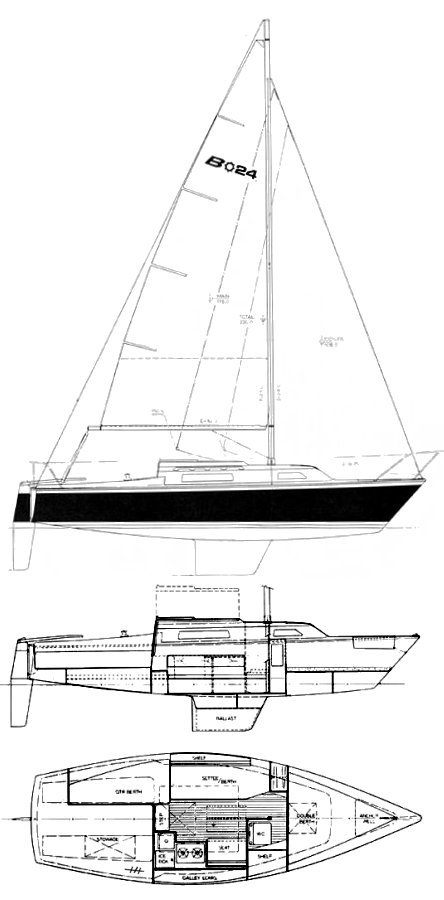

BALBOA 24
Built by Laguna Yachts/Coastal Recreation Inc. (USA)
• Designed by Shad Turner/William Downing
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1981
Dimensions
Length Overall (LOA):
7.19 m
Length Waterline (LWL):
6.10 m
Beam:
2.54 m
Draft (Max):
0.89 m
Headroom:
1.37 m
Weight & Ballast
Displacement:
1,179 kg
Ballast:
408 kg
Sail Plan
Foresail Area:
9.81 m²
Mainsail Area:
10.68 m²
Total Sail Area (calculated):
20.49 m²
Sail Area (reported):
20.44 m²
I (Fore Triangle Height):
7.32 m
J (Fore Triangle Base):
2.68 m
P (Mainsail Hoist):
7.01 m
E (Boom Length):
3.05 m
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calculated):
18.36
SA/Displacement (Reported):
18.66
Ballast/Disp Ratio:
34.62%
Displacement/Length:
145.09
Comfort Ratio:
11.32
Capsize Screening:
2.43
S-Number:
3.69
Notes
Similar to LAGUNA 24S.
