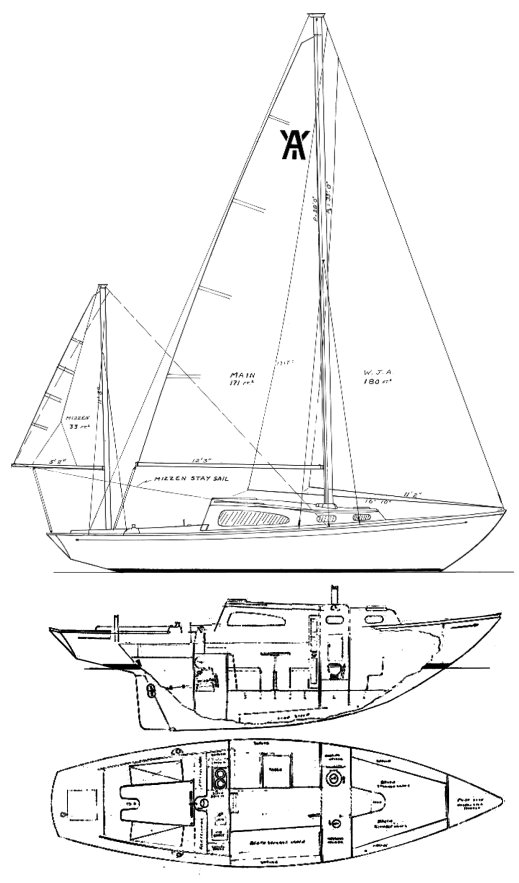

ACADIAN 30 YWL (PACESHIP)
Built by Industrial Manufacturing (CAN)
• Designed by G. William McVay
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Yawl
Construction:
FG
First Built:
1968
Dimensions
Length Overall (LOA):
9.14 m
Length Waterline (LWL):
6.63 m
Beam:
2.59 m
Draft (Max):
1.31 m
Weight & Ballast
Displacement:
3,175 kg
Ballast:
1,542 kg
Sail Plan
Foresail Area:
17.11 m²
Mainsail Area:
15.93 m²
Total Sail Area (calculated):
33.04 m²
Sail Area (reported):
36.14 m²
I (Fore Triangle Height):
10.06 m
J (Fore Triangle Base):
3.40 m
P (Mainsail Hoist):
8.53 m
E (Boom Length):
3.73 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
38 L
Water Capacity:
95 L
Performance Ratios
Hull Speed:
6.25 knots
SA/Displacement (Calculated):
15.29
SA/Displacement (Reported):
17.06
Ballast/Disp Ratio:
48.57%
Displacement/Length:
303.72
Comfort Ratio:
25.81
Capsize Screening:
1.78
S-Number:
1.61
Notes
First introduced as a sloop.
