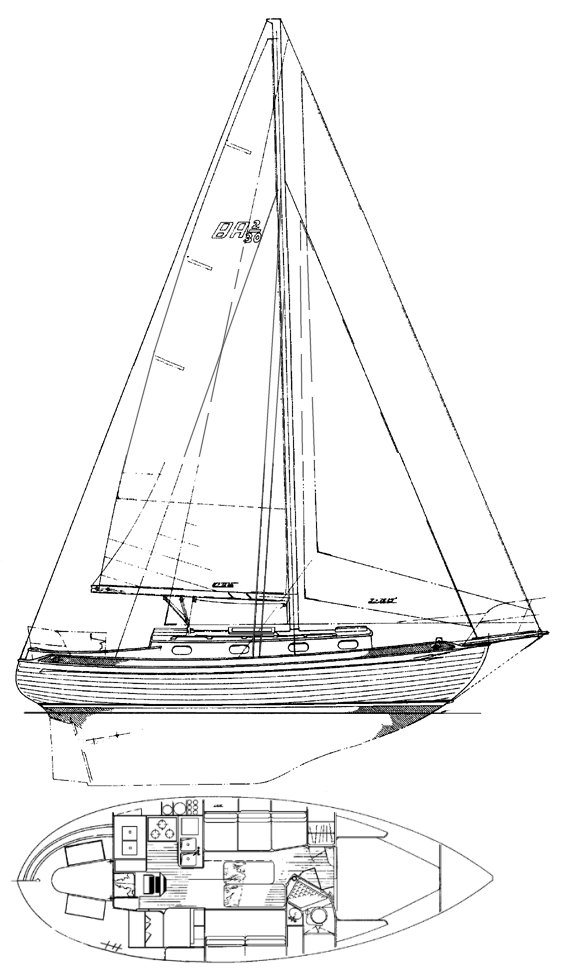

BABA 30
Built by Shing Sheng Ltd. (TAIWAN)
• Designed by Robert Perry
General Information
Hull Type:
Long Keel
Rigging Type:
Cutter
Construction:
FG
First Built:
1976
Last Built:
1986
Number Built:
170
Dimensions
Length Overall (LOA):
9.07 m
Length Waterline (LWL):
7.47 m
Beam:
3.12 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
5,670 kg
Ballast:
2,268 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
27.34 m²
Mainsail Area:
19.51 m²
Total Sail Area (calculated):
46.85 m²
Sail Area (reported):
46.82 m²
I (Fore Triangle Height):
12.04 m
J (Fore Triangle Base):
4.54 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
3.66 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD11C
Engine Power:
23 HP
Fuel Capacity:
132 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
6.63 knots
SA/Displacement (Calculated):
14.73
SA/Displacement (Reported):
15.02
Ballast/Disp Ratio:
40.00%
Displacement/Length:
379.46
Comfort Ratio:
33.38
Capsize Screening:
1.77
S-Number:
1.12
Notes
First (30) boats were built by Shing Sheng Ltd. Later built by Ta Shing?
