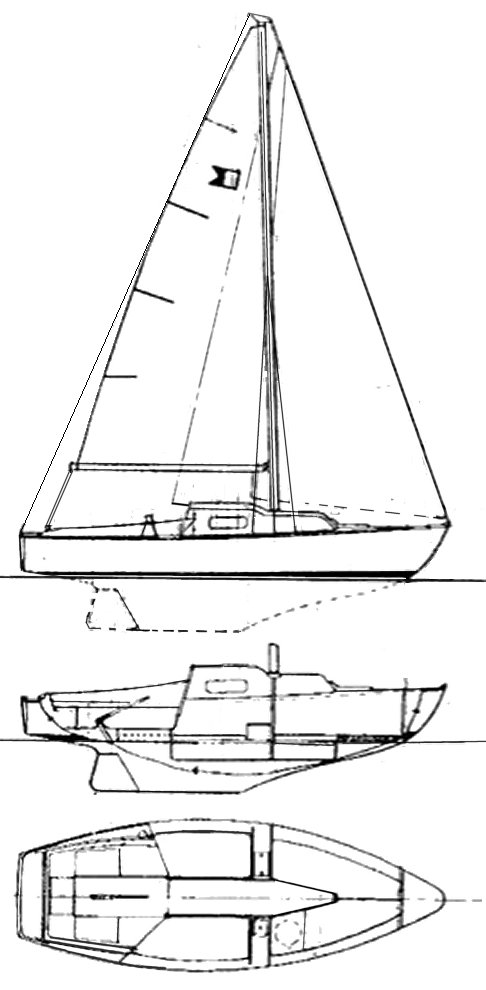

ABLE 20
Built by Loughlin Boat Works. (USA)
• Designed by W. R. Loughlin
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1972
Dimensions
Length Overall (LOA):
6.10 m
Length Waterline (LWL):
4.88 m
Beam:
2.23 m
Draft (Max):
0.74 m
Weight & Ballast
Displacement:
1,134 kg
Ballast:
454 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
8.92 m²
Mainsail Area:
8.06 m²
Total Sail Area (calculated):
16.98 m²
Sail Area (reported):
18.77 m²
I (Fore Triangle Height):
7.32 m
J (Fore Triangle Base):
2.44 m
P (Mainsail Hoist):
6.22 m
E (Boom Length):
2.59 m
Engine & Systems
Water Capacity:
38 L
Performance Ratios
Hull Speed:
5.36 knots
SA/Displacement (Calculated):
15.61
SA/Displacement (Reported):
17.59
Ballast/Disp Ratio:
40.00%
Displacement/Length:
272.48
Comfort Ratio:
15.81
Capsize Screening:
2.16
S-Number:
1.88
Notes
BUILDERS:
