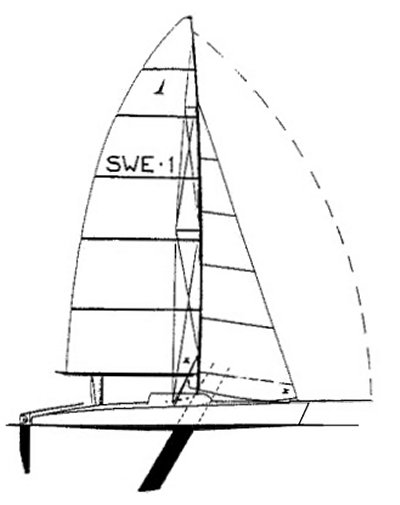

B&R 23
Built by TB-Yacht (SWE)
• Designed by Lars Bergstrom & Sven Ridder
General Information
Hull Type:
Lifting Keel
Rigging Type:
B&R
Construction:
FG
First Built:
1992
Dimensions
Length Overall (LOA):
7.01 m
Length Waterline (LWL):
6.71 m
Beam:
2.44 m
Draft (Max):
1.45 m
Draft (Min):
0.30 m
Weight & Ballast
Displacement:
399 kg
Ballast:
100 kg
Sail Plan
Sail Area (reported):
32.14 m²
Engine & Systems
Performance Ratios
Hull Speed:
6.29 knots
SA/Displacement (Reported):
60.39
Ballast/Disp Ratio:
25.00%
Displacement/Length:
36.89
Comfort Ratio:
3.82
Capsize Screening:
3.34
