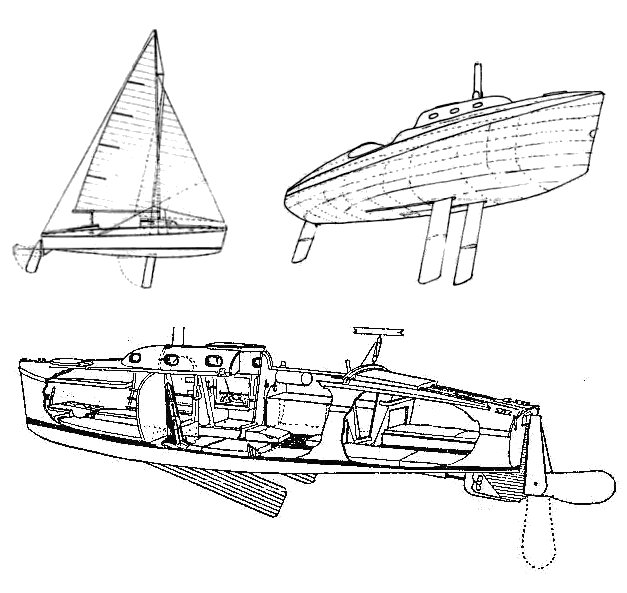

ATALANTA 26
Built by Fairey Marine (UK)
• Designed by Uffa Fox
General Information
Hull Type:
Twin Centerboards
Rigging Type:
Fractional Sloop
Construction:
Wood ('hot molded' laminate)
First Built:
1955
Number Built:
186
Dimensions
Length Overall (LOA):
7.92 m
Length Waterline (LWL):
7.32 m
Beam:
2.29 m
Draft (Max):
1.75 m
Draft (Min):
0.38 m
Weight & Ballast
Displacement:
1,134 kg
Ballast:
431 kg
Sail Plan
Foresail Area:
10.06 m²
Mainsail Area:
14.25 m²
Total Sail Area (calculated):
24.31 m²
Sail Area (reported):
22.30 m²
I (Fore Triangle Height):
6.95 m
J (Fore Triangle Base):
2.90 m
P (Mainsail Hoist):
7.92 m
E (Boom Length):
3.60 m
Engine & Systems
Engine Make:
Coventry
Engine Type:
Gas
Engine Model:
Victor
Performance Ratios
Hull Speed:
6.56 knots
SA/Displacement (Calculated):
22.36
SA/Displacement (Reported):
20.90
Ballast/Disp Ratio:
38.00%
Displacement/Length:
80.73
Comfort Ratio:
10.72
Capsize Screening:
2.21
S-Number:
5.61
Notes
Twin centerboards, retractable rudder and narrow beam made this one of the earliest 'trailerable' cruising yachts of this size. The 'hot molded' construction method had been developed by the builder for the WWII Swordfish torpedo plane. George O'Day was, at the time, the US agent for Fairey Marine, and some were said to have been imported to the US. (We have yet to see one in the US)
