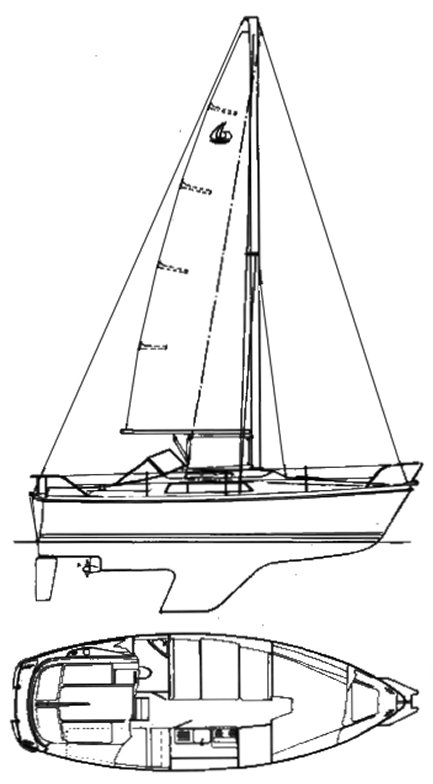

ARRANSEN 780
Built by Lytton Boatbuilding Ltd.(UK)
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1979
Last Built:
1981
Dimensions
Length Overall (LOA):
7.80 m
Length Waterline (LWL):
6.75 m
Beam:
2.95 m
Draft (Max):
1.20 m
Weight & Ballast
Displacement:
3,000 kg
Ballast:
1,270 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
24.99 m²
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD11
Engine Power:
23 HP
Fuel Capacity:
83 L
Water Capacity:
178 L
Performance Ratios
Hull Speed:
6.31 knots
SA/Displacement (Reported):
12.25
Ballast/Disp Ratio:
42.33%
Displacement/Length:
271.70
Comfort Ratio:
21.44
Capsize Screening:
2.07
Notes
Bilge keel version also available.
