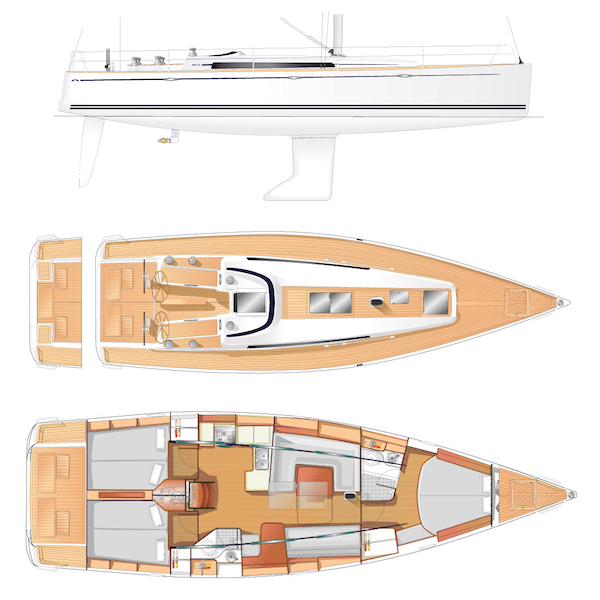

ARCONA 435
Built by Arcona Yachts
• Designed by Stefan Qviberg
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG reinforced vinylester with Divinycell core
First Built:
2018
Dimensions
Length Overall (LOA):
13.20 m
Length Waterline (LWL):
12.20 m
Beam:
3.98 m
Draft (Max):
2.30 m
Max Height:
21.00 m
Weight & Ballast
Displacement:
8,900 kg
Ballast Type:
Lead bulb with cast iron fin
Sail Plan
Foresail Area:
44.87 m²
Mainsail Area:
51.61 m²
Total Sail Area (calculated):
96.48 m²
Sail Area (reported):
114.00 m²
I (Fore Triangle Height):
17.80 m
J (Fore Triangle Base):
5.04 m
P (Mainsail Hoist):
17.20 m
E (Boom Length):
6.00 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
JH45C
Fuel Capacity:
180 L
Water Capacity:
300 L
Performance Ratios
Hull Speed:
8.48 knots
SA/Displacement (Calculated):
22.47
SA/Displacement (Reported):
27.09
Displacement/Length:
136.56
Comfort Ratio:
24.14
Capsize Screening:
1.94
S-Number:
4.41
Notes
Optional keels: Shallow = 6.56 ft/2.0m. Racing = 8.53 ft/2.6m. Saildrive. Listed SA included a 107% jib.
