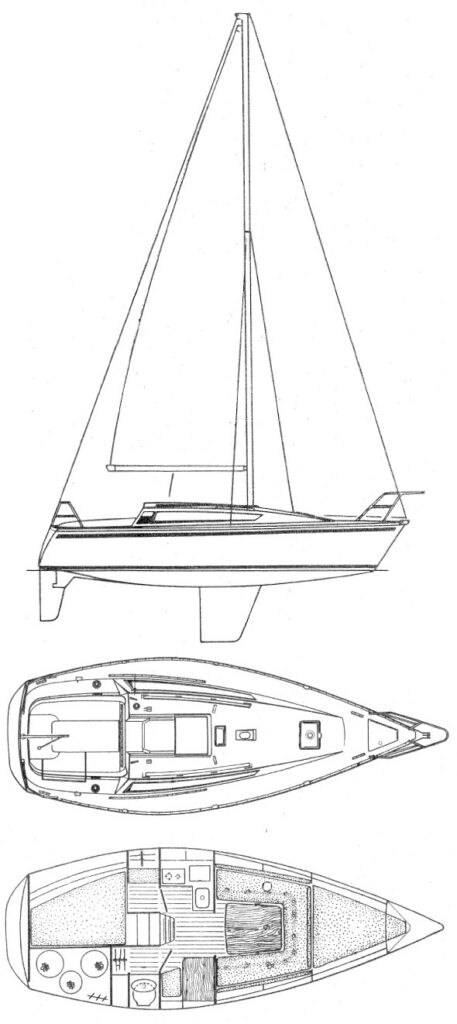

ARCADIA 30 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Tony Castro
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1983
Last Built:
1986
Number Built:
600
Dimensions
Length Overall (LOA):
9.00 m
Length Waterline (LWL):
7.45 m
Beam:
3.15 m
Draft (Max):
1.73 m
Weight & Ballast
Displacement:
2,801 kg
Ballast:
1,219 kg
Sail Plan
Foresail Area:
20.14 m²
Mainsail Area:
14.94 m²
Total Sail Area (calculated):
35.08 m²
Sail Area (reported):
35.12 m²
I (Fore Triangle Height):
11.33 m
J (Fore Triangle Base):
3.56 m
P (Mainsail Hoist):
9.80 m
E (Boom Length):
3.05 m
Engine & Systems
Fuel Capacity:
26 L
Water Capacity:
91 L
Performance Ratios
Hull Speed:
6.62 knots
SA/Displacement (Calculated):
17.65
SA/Displacement (Reported):
18.02
Ballast/Disp Ratio:
43.53%
Displacement/Length:
188.84
Comfort Ratio:
16.39
Capsize Screening:
2.26
S-Number:
2.96
Notes
Based on SUN FAST, 1/2 ton racer, prototype.
