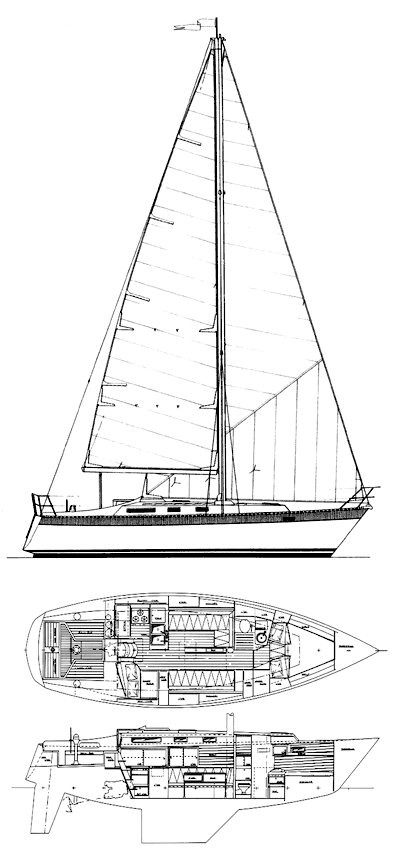

ARAGOSA 35
Built by Aragosa Yachts (CAN)
• Designed by Ted Brewer
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
Steel
First Built:
1989
Dimensions
Length Overall (LOA):
10.59 m
Length Waterline (LWL):
8.69 m
Beam:
3.43 m
Draft (Max):
1.62 m
Weight & Ballast
Displacement:
6,917 kg
Ballast:
2,449 kg
Sail Plan
Sail Area (reported):
58.62 m²
Engine & Systems
Fuel Capacity:
189 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.15 knots
SA/Displacement (Reported):
16.48
Ballast/Disp Ratio:
35.41%
Displacement/Length:
294.09
Comfort Ratio:
30.89
Capsize Screening:
1.82
Notes
Ted Brewer design # 212.
