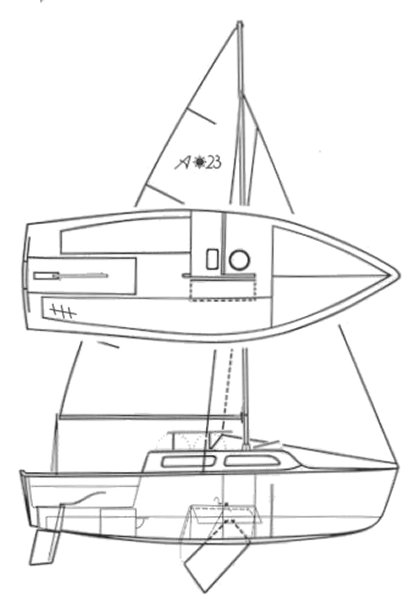

AQUARIUS 23
Built by Coastal Recreation Inc. (USA)
• Designed by Peter Barrett / Stan Miller
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
Construction:
FG w/balsa cored deck
First Built:
1969
Last Built:
1976
Dimensions
Length Overall (LOA):
6.91 m
Length Waterline (LWL):
6.45 m
Beam:
2.41 m
Draft (Max):
1.40 m
Draft (Min):
0.33 m
Weight & Ballast
Displacement:
1,034 kg
Ballast:
370 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
8.89 m²
Mainsail Area:
11.34 m²
Total Sail Area (calculated):
20.23 m²
Sail Area (reported):
20.25 m²
I (Fore Triangle Height):
6.71 m
J (Fore Triangle Base):
2.65 m
P (Mainsail Hoist):
7.22 m
E (Boom Length):
3.14 m
Engine & Systems
Performance Ratios
Hull Speed:
6.17 knots
SA/Displacement (Calculated):
19.78
SA/Displacement (Reported):
20.18
Ballast/Disp Ratio:
35.75%
Displacement/Length:
107.28
Comfort Ratio:
10.35
Capsize Screening:
2.41
S-Number:
4.59
Notes
Weight of keel: 165 lbs.
