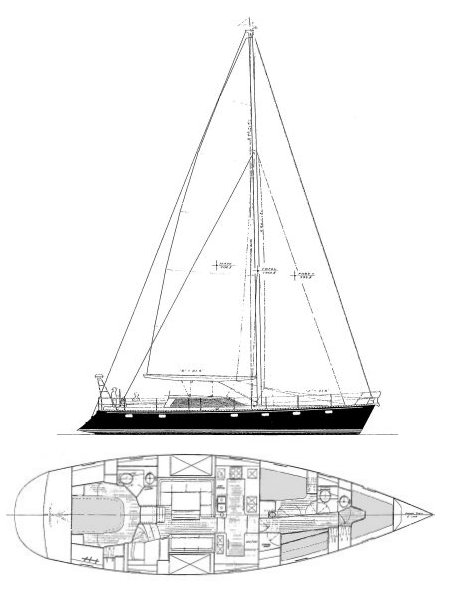

APOGEE 50 (PAINE)
Built by Able Marine Custom Yachts
• Designed by Chuck Paine
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Cutter
Construction:
FG Composite
First Built:
1995
Dimensions
Length Overall (LOA):
15.54 m
Length Waterline (LWL):
13.92 m
Beam:
4.27 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
14,515 kg
Ballast:
5,171 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
54.53 m²
Mainsail Area:
47.42 m²
Total Sail Area (calculated):
101.95 m²
Sail Area (reported):
99.22 m²
I (Fore Triangle Height):
19.66 m
J (Fore Triangle Base):
5.55 m
P (Mainsail Hoist):
17.68 m
E (Boom Length):
5.36 m
Engine & Systems
Performance Ratios
Hull Speed:
9.06 knots
SA/Displacement (Calculated):
17.13
SA/Displacement (Reported):
17.02
Ballast/Disp Ratio:
35.63%
Displacement/Length:
149.97
Comfort Ratio:
31.14
Capsize Screening:
1.77
S-Number:
3.44
