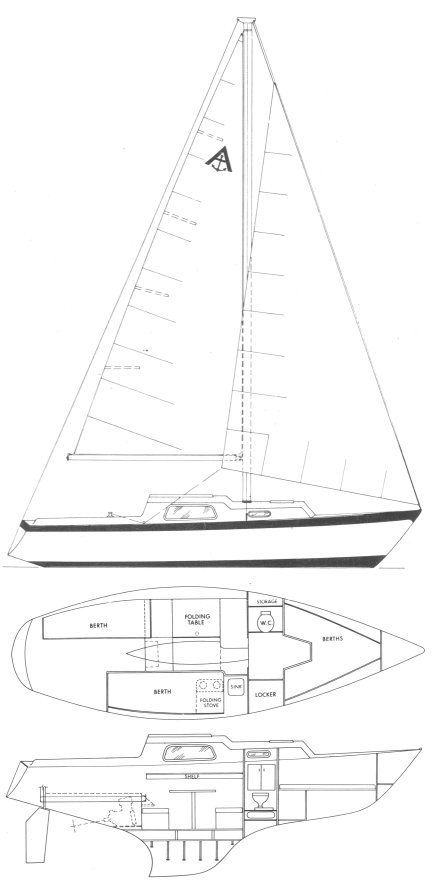

ANNAPOLIS 26 (HOLMES)
Built by Tidewater Boats Inc. (USA)
• Designed by John Holmes
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1970
Dimensions
Length Overall (LOA):
7.80 m
Length Waterline (LWL):
6.10 m
Beam:
2.44 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
2,268 kg
Ballast:
907 kg
Sail Plan
Foresail Area:
15.36 m²
Mainsail Area:
11.80 m²
Total Sail Area (calculated):
27.16 m²
Sail Area (reported):
20.90 m²
I (Fore Triangle Height):
9.60 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
8.13 m
E (Boom Length):
2.90 m
Engine & Systems
Engine Make:
Petter
Engine Type:
Diesel
Engine Power:
5 HP
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calculated):
15.73
SA/Displacement (Reported):
12.35
Ballast/Disp Ratio:
40.00%
Displacement/Length:
279.02
Comfort Ratio:
22.34
Capsize Screening:
1.87
S-Number:
1.83
Notes
An earlier version was called the GULFSTREAM 36.
