ANDREWS 30 MKI
Built by Dencho Marine (USA)
• Designed by Alan Andrews
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG/ E glass w/balsa core
First Built:
1982
Last Built:
1983
Number Built:
1
Dimensions
Length Overall (LOA):
9.13 m
Length Waterline (LWL):
7.71 m
Beam:
3.20 m
Draft (Max):
1.72 m
Weight & Ballast
Displacement:
3,175 kg
Ballast:
1,134 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
23.41 m²
Mainsail Area:
21.89 m²
Total Sail Area (calculated):
45.30 m²
Sail Area (reported):
45.34 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
11.40 m
E (Boom Length):
3.84 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Fuel Capacity:
23 L
Performance Ratios
Hull Speed:
6.74 knots
SA/Displacement (Calculated):
20.97
SA/Displacement (Reported):
21.40
Ballast/Disp Ratio:
35.71%
Displacement/Length:
193.20
Comfort Ratio:
17.68
Capsize Screening:
2.20
S-Number:
3.28
Notes

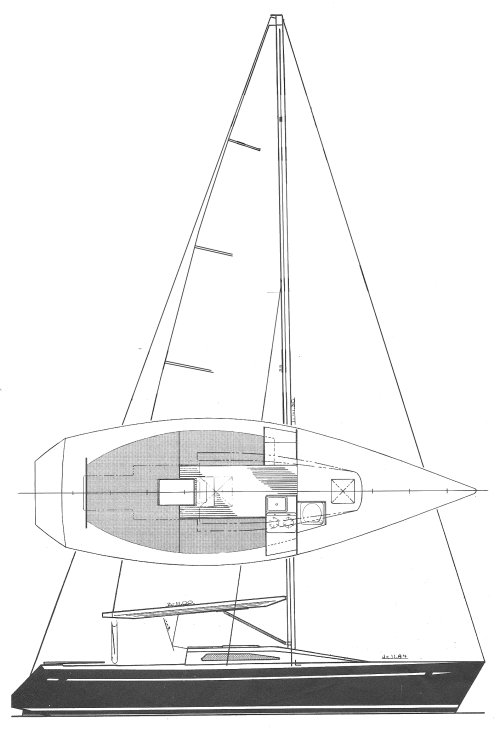

MORC class B. Synonymous with 'Details', winner of the 1982 International MORC Championships. (shown in photo - Info. supplied by most recent owner.)
