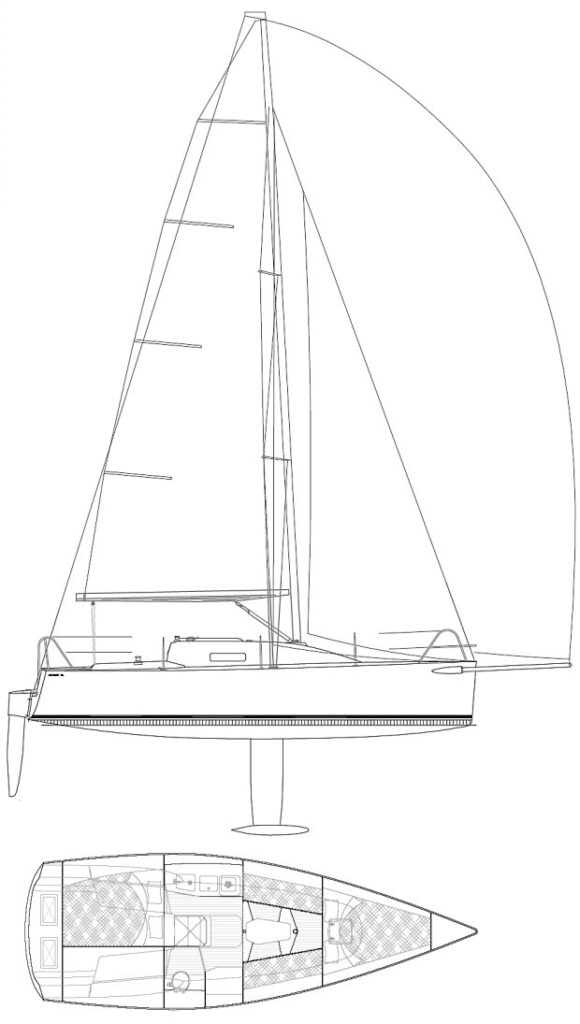

ANDREWS 28
Built by Sylvana Yachts (CAN)
• Designed by Alan Andrews
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
Construction:
FG foam core/infusion
First Built:
2007
Last Built:
2010
Number Built:
4
Dimensions
Length Overall (LOA):
8.53 m
Length Waterline (LWL):
7.85 m
Beam:
2.99 m
Draft (Max):
2.13 m
Draft (Min):
0.76 m
Weight & Ballast
Displacement:
1,701 kg
Ballast:
585 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
16.57 m²
Mainsail Area:
21.74 m²
Total Sail Area (calculated):
38.31 m²
Sail Area (reported):
38.28 m²
I (Fore Triangle Height):
9.88 m
J (Fore Triangle Base):
3.35 m
P (Mainsail Hoist):
10.97 m
E (Boom Length):
3.96 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
1GM10
Performance Ratios
Hull Speed:
6.80 knots
SA/Displacement (Calculated):
26.88
SA/Displacement (Reported):
27.38
Ballast/Disp Ratio:
34.40%
Displacement/Length:
98.05
Comfort Ratio:
10.46
Capsize Screening:
2.53
S-Number:
5.88
Notes
Thanks to Gary S. for providing correction.
