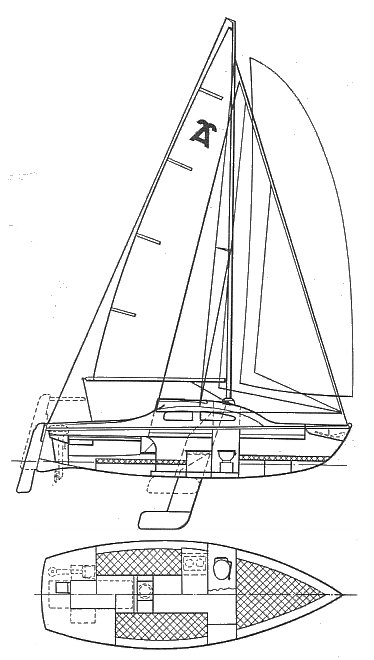

ANDERSON 22
Built by Anderson, Rigden & Perkins (UK)
• Designed by Oliver Lee
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1974
Dimensions
Length Overall (LOA):
6.63 m
Length Waterline (LWL):
5.87 m
Beam:
2.31 m
Draft (Max):
1.32 m
Draft (Min):
0.66 m
Weight & Ballast
Displacement:
1,134 kg
Ballast:
408 kg
Sail Plan
Sail Area (reported):
18.49 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.88 knots
SA/Displacement (Reported):
17.33
Ballast/Disp Ratio:
36.00%
Displacement/Length:
156.46
Comfort Ratio:
13.00
Capsize Screening:
2.24
