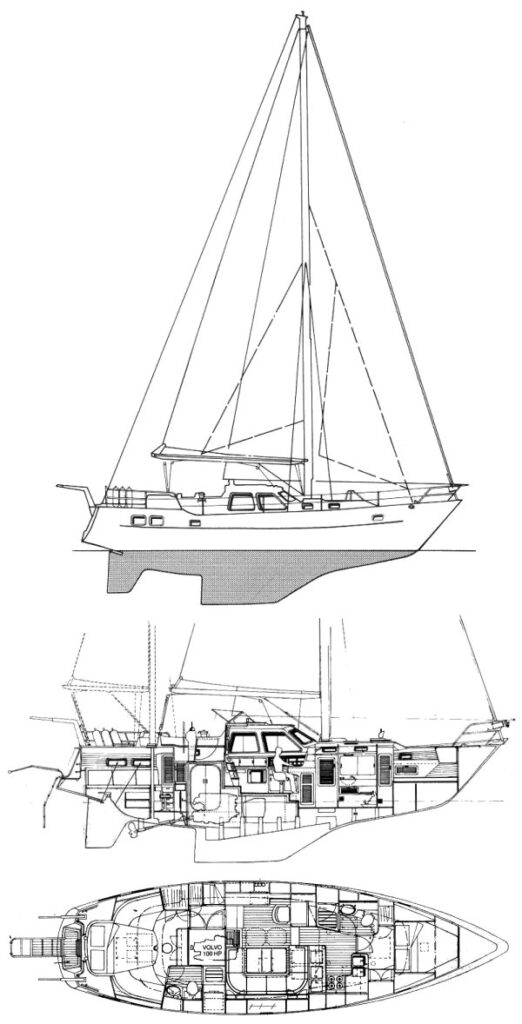

AMPHITRITE 45 MS (WAUQUIEZ)
Built by Henri Wauquiez (FRA)
• Designed by Donald Pye
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1988
Last Built:
1994
Number Built:
21
Dimensions
Length Overall (LOA):
13.60 m
Length Waterline (LWL):
10.50 m
Beam:
4.20 m
Draft (Max):
1.92 m
Weight & Ballast
Displacement:
14,500 kg
Ballast:
4,600 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
39.01 m²
Mainsail Area:
31.11 m²
Total Sail Area (calculated):
70.12 m²
Sail Area (reported):
102.00 m²
I (Fore Triangle Height):
16.82 m
J (Fore Triangle Base):
4.64 m
P (Mainsail Hoist):
14.60 m
E (Boom Length):
4.26 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
100 HP
Fuel Capacity:
700 L
Water Capacity:
800 L
Performance Ratios
Hull Speed:
7.87 knots
SA/Displacement (Calculated):
11.79
SA/Displacement (Reported):
17.51
Ballast/Disp Ratio:
31.72%
Displacement/Length:
349.05
Comfort Ratio:
40.04
Capsize Screening:
1.74
S-Number:
1.07
Notes
Based on the same design (and also from Wauquiez): AMPHITRITE 43.
