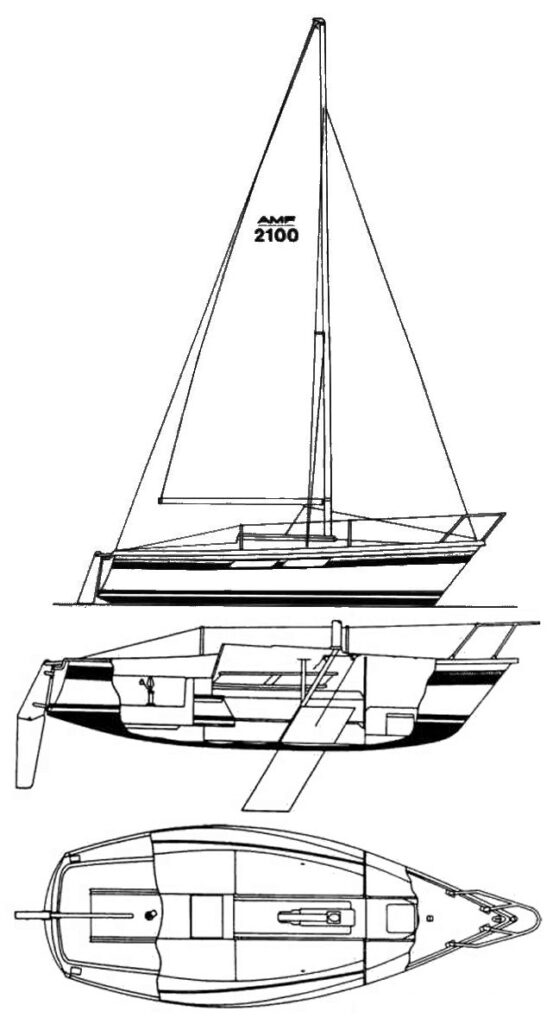

AMF 2100
Built by AMF (USA)
• Designed by Ted Hood
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1980
Last Built:
1983
Dimensions
Length Overall (LOA):
6.43 m
Length Waterline (LWL):
5.36 m
Beam:
2.44 m
Draft (Max):
1.22 m
Draft (Min):
0.30 m
Max Height:
8.41 m
Weight & Ballast
Displacement:
998 kg
Ballast:
386 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
8.89 m²
Mainsail Area:
10.56 m²
Total Sail Area (calculated):
19.45 m²
Sail Area (reported):
19.42 m²
I (Fore Triangle Height):
7.29 m
J (Fore Triangle Base):
2.44 m
P (Mainsail Hoist):
7.70 m
E (Boom Length):
2.74 m
Engine & Systems
Performance Ratios
Hull Speed:
5.62 knots
SA/Displacement (Calculated):
19.47
SA/Displacement (Reported):
19.82
Ballast/Disp Ratio:
38.64%
Displacement/Length:
180.77
Comfort Ratio:
11.43
Capsize Screening:
2.46
S-Number:
3.29
