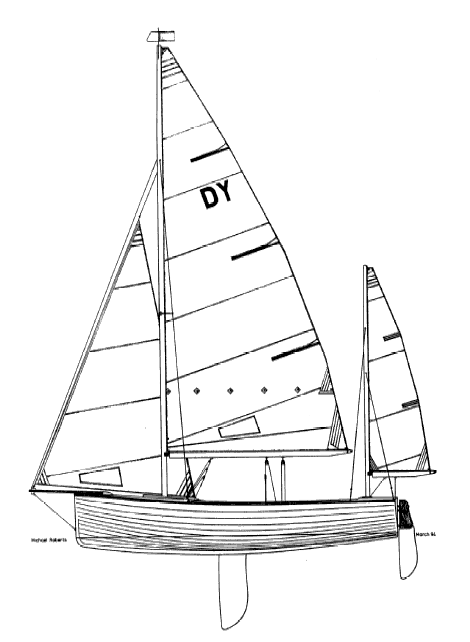

DEVON YAWL
Built by Classic Boat (USA) John Lack (UK)
• Designed by Michael Quick
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
Construction:
FG
First Built:
1968
Dimensions
Length Overall (LOA):
4.88 m
Length Waterline (LWL):
4.88 m
Beam:
1.88 m
Draft (Max):
1.37 m
Draft (Min):
0.28 m
Weight & Ballast
Displacement:
431 kg
Ballast:
142 kg
Sail Plan
Foresail Area:
5.57 m²
Mainsail Area:
8.36 m²
Total Sail Area (calculated):
13.93 m²
Sail Area (reported):
15.51 m²
I (Fore Triangle Height):
2.44 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
6.10 m
E (Boom Length):
2.74 m
Engine & Systems
Performance Ratios
Hull Speed:
5.36 knots
SA/Displacement (Calculated):
24.43
SA/Displacement (Reported):
27.70
Ballast/Disp Ratio:
33.05%
Displacement/Length:
103.54
Comfort Ratio:
8.12
Capsize Screening:
2.51
S-Number:
5.39
Notes
A FG version of the traditional Salcombe Yawl of the UK. The DEVON DAY BOAT is similar but features a cuddy/cabin.
