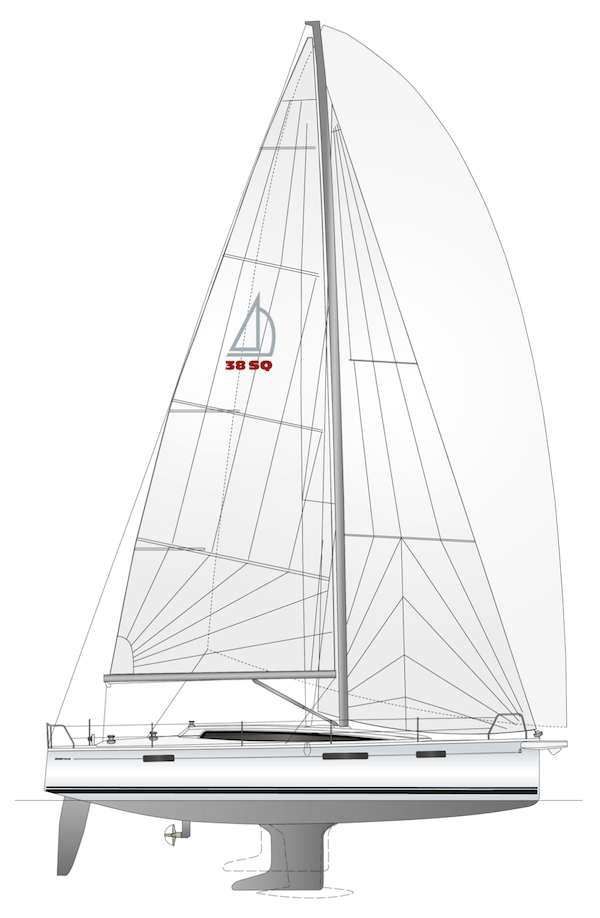

DEHLER 38 SQ
Built by Dehler Yachts
• Designed by judel/vrolijk & co.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
GRP w/ vinylester resin and balsa core
First Built:
2020
Dimensions
Length Overall (LOA):
12.07 m
Length Waterline (LWL):
10.40 m
Beam:
3.75 m
Draft (Max):
2.03 m
Max Height:
17.70 m
Weight & Ballast
Displacement:
7,500 kg
Ballast:
2,380 kg
Ballast Type:
Cast iron
Sail Plan
Foresail Area:
32.84 m²
Mainsail Area:
37.70 m²
Total Sail Area (calculated):
70.54 m²
Sail Area (reported):
77.90 m²
I (Fore Triangle Height):
15.07 m
J (Fore Triangle Base):
4.36 m
P (Mainsail Hoist):
14.50 m
E (Boom Length):
5.20 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
29 HP
Fuel Capacity:
160 L
Water Capacity:
295 L
Performance Ratios
Hull Speed:
7.83 knots
SA/Displacement (Calculated):
18.41
SA/Displacement (Reported):
20.75
Ballast/Disp Ratio:
31.73%
Displacement/Length:
185.84
Comfort Ratio:
25.26
Capsize Screening:
1.93
S-Number:
3.10
Notes
Hull length: 11.30m / 37.08ft
